Baopack Auto Packaging Machine Co., Ltd.
We provide customers with a wide range of high-quality packaging machines, along with excellent services.
If you would like to leave us a comment please go to Contact Us
1
Range of application
Snack - Chips - Popcorn - Puffed food - Dried fruits - Cookies - Biscuits - Candies - Nuts - Rice - Beans - Grains - Sugar - Salt - Pet food - Pasta - Sunflower seeds - Gummy candies - Lollipop - Sesame
|
Item |
Content |
|
Capacity (estimate) |
Max 90 bags/min / machine according to the bag sizes, it is also affected by the quality of film and bag length. |
|
Accuracy |
≤±1.5%, depending on the measuring equipment & materials |
|
Bag size |
(L)50-350mm(W) 50-250mm |
|
Film width |
Max 520mm |
|
Bag type |
Pillow bag,punching hole bag,gusseted bag |
|
Pulling belt type |
Double-belts pulling film |
|
Filling range |
10-2000ml |
|
Film thickness |
0.04-0.09mm |
|
Film material |
BOPP/VMCPP,PET/PE,BOPP/CPP, PET/AL/PE etc |
|
Air consumption |
0.8Mpa 0.3m³/min |
|
Total power |
18.3 KW (depend on the specific circumstances.) |
|
Voltage |
Single phase220V, three phase380V, 50HZ (depend on the customer’s country) |
|
Air compressor |
Not less than 1 CBM |
INQUIRY ONLINE
product detail
Package product
Z-type conveyor
Lifting height: Can be customized to meet customers’ requirement.
Speed of lifting:0-17m/minute
Rotary table
The rotary table can collect finished products.
Diameter: 1000 mm
Height: 650 mm
Voltage: 220V/120 W
Supporting Platform
The sizes of supporting platform can be customized. Its sizes are depended by the sizes of packing machine and weigher. The platform can be made by stainless steel, also can be painted steel.

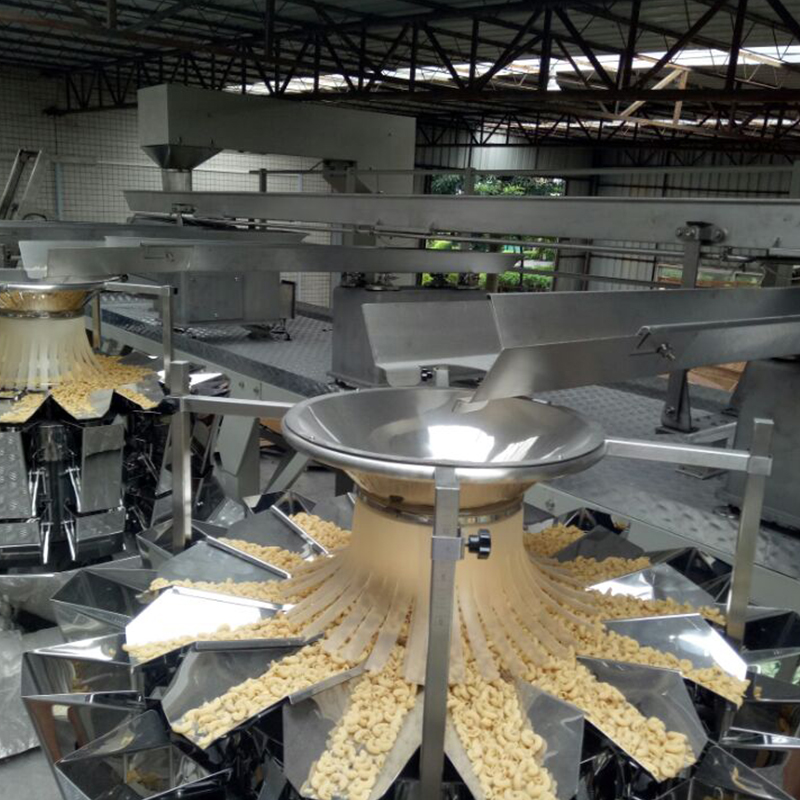

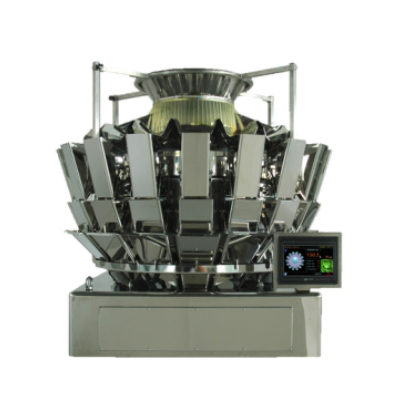

14 heads weigher
BAOPACK Packaging Machinery Co.,Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
Weigh Ranger: 10-2000g
Accuracy: 0.5-1.5g
Max Speed: 90 wpm
Weigh Volume: 2.5L
Hopper No.: 14
Control Panel: 10" touch screen
Driving system: stepper motor
Material: SUS304
Power supply: AC 110/220, 50/60 Hz
Power: 1.3kw
Size(L*W*H): 1245*1210*1388 mm
Weight: 430 kg
We have various models of weigher, such as 10 heads weigher, 14 heads weigher, 18 heads weigher, Salad weigher, linear weigher, and so on. Different products will be used different weigher. Please refers Package Measurement System of Flexible Solution.

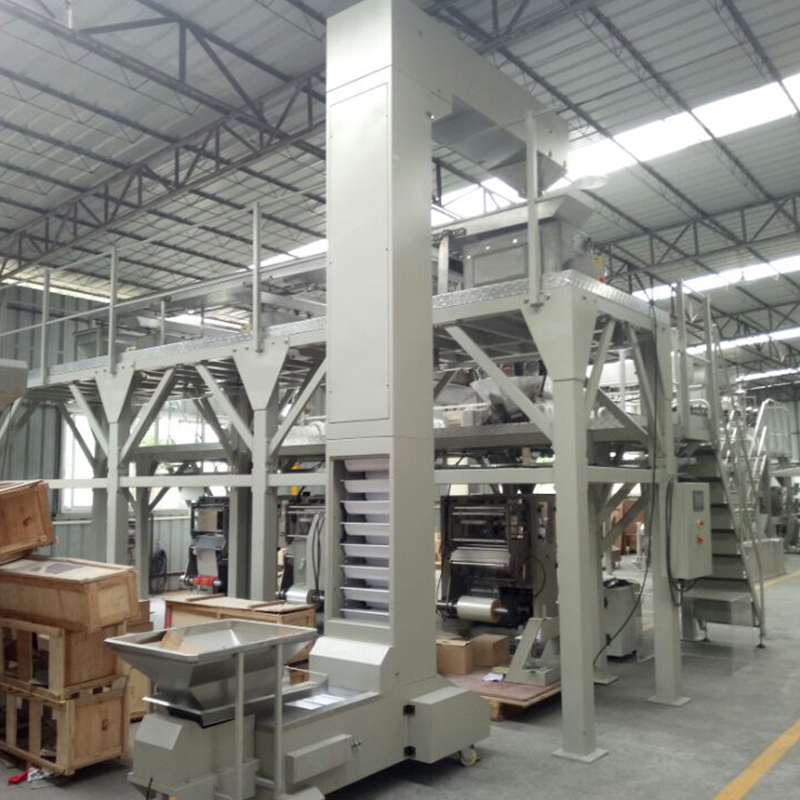

Z-type conveyor
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
Lifting height: Can be customized to meet customers’ requirement.
Speed of lifting:0-17m/minute
Lifting quantity:9 or 12 cubic meter/hour
Bucket:2L or 4L, flat or dimple bucket
Power:750W
Voltage:380v

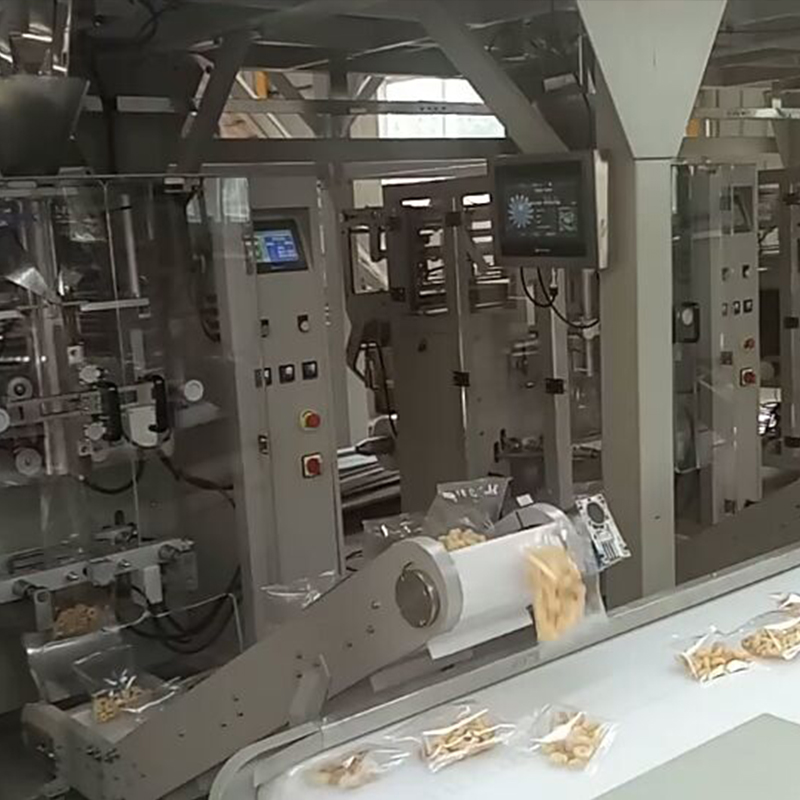

Output conveyor
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
The finished products conveyor have different models. The belt width can be 200mm, 300mm, 295mm, 435mm, etc. The belt material has PU, PVC, PP belt, or chain belt. The optional device is various speed drives.
Rotary table
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
The rotary table can collect finished products.
Diameter: 1000 mm
Height: 650 mm
Voltage: 220V/120 W
Supporting Platform
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
Diameter: 1000 mm
Height: 650 mm
Voltage: 220V/120 W
INQUIRY ONLINE

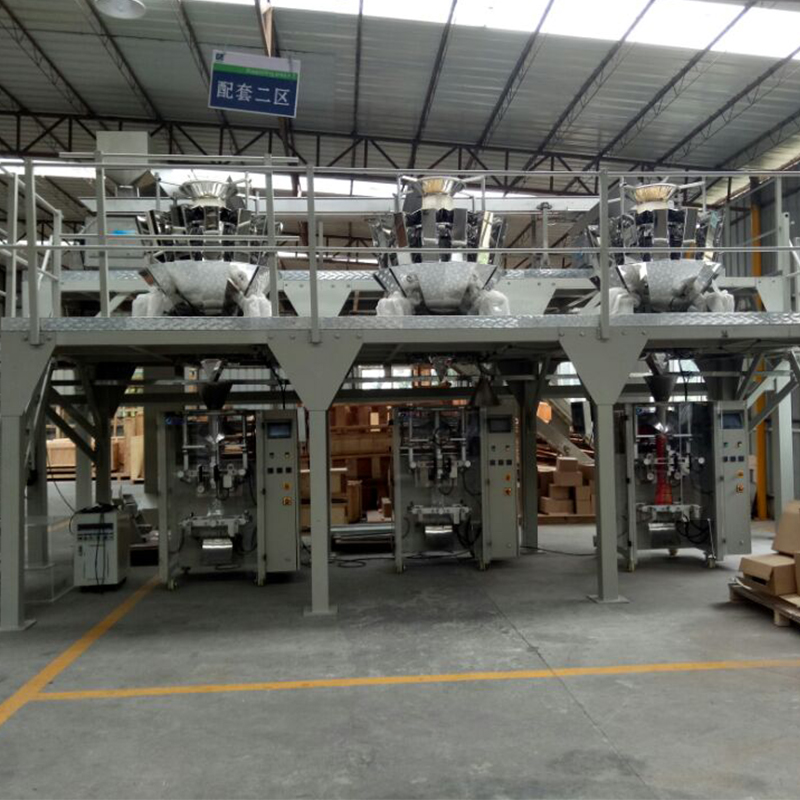

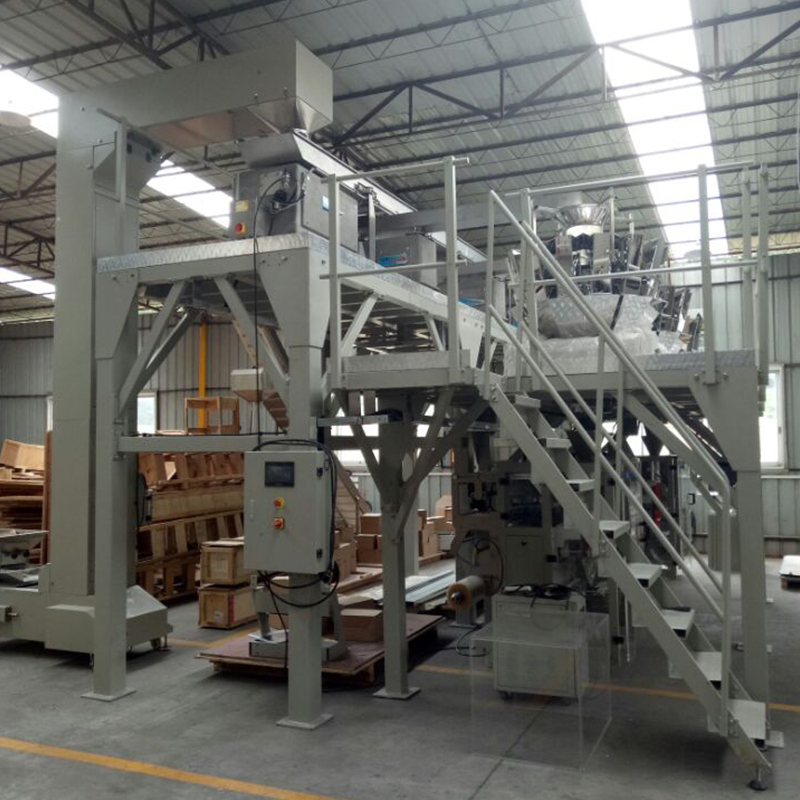

VFFS VP52IIB (Double Servo Motors) with 14 Heads Weigher
VP52IIB (double servo motors) with 14 heads weigher
VP52IIB (double servo motors) with 14 heads weigher
VP52IIB (double servo motors) with 14 heads weigher
VP52IIB (double servo motors) with 14 heads weigher
VP52IIB (double servo motors) with 14 heads weigher
VP52IIB (double servo motors) with 14 heads weigher
VP52IIB (double servo motors) with 14 heads weigher
VP52IIB (double servo motors) with 14 heads weigher
