1
|
Items |
Content |
|
Capacity |
40 bag/min (it will be effected by film material, packing weight and bag length and so on.) |
|
Bag size |
Front width: 90-280mm |
|
Side width: 40- 150mm |
|
|
Width of edge sealing: 5-10mm |
|
|
Length: 150-470mm |
|
|
Bag type |
Quad-seal bag |
|
Reel film width |
280- 730mm |
|
Film thickness |
0.04-0.09mm |
|
Air consumption |
0.8Mps 0.3m3/min |
|
Main power/voltage |
4.6KW/ 220V 50/60Hz |
|
Dimension |
1680*1610*2050mm |
|
Weight |
900kg |
INQUIRY ONLINE
product detail
Features
* Attractive bag type to satisfy your high demand.
* It completes bagging, sealing, date printing, punching, counting automatically;

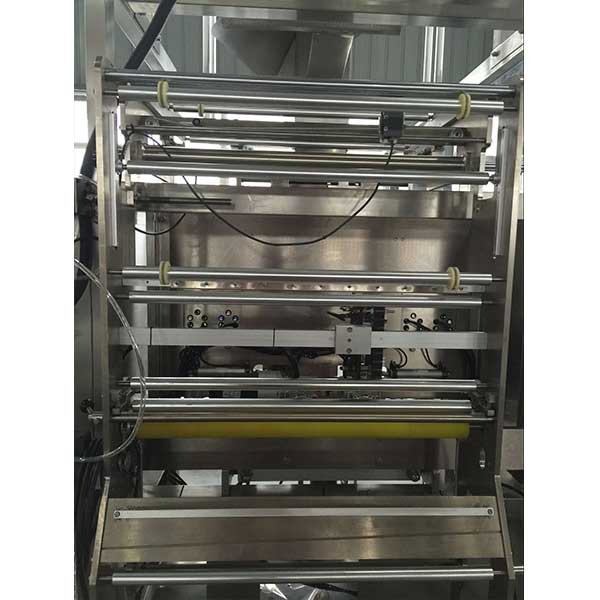

* Film drawing down system controlled by servo motor. Film rectifying deviation automaticlly;

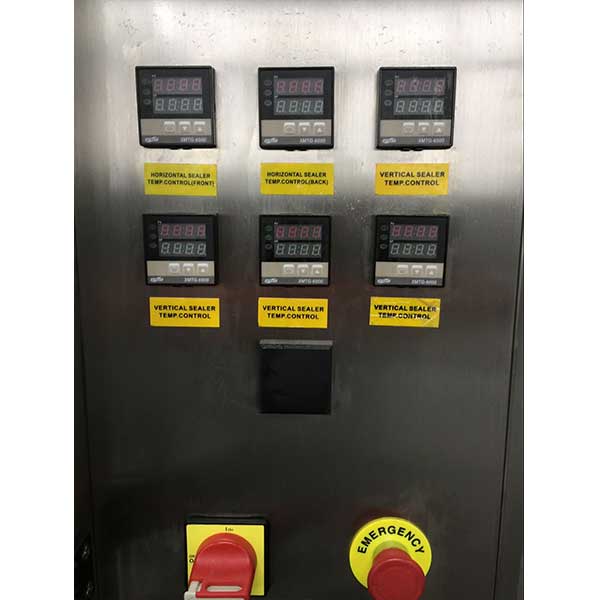

* Famous brand PLC. Pneumatic system for vertical and horizontal sealing;
* Easy to operate, low maintenance, compatible with different internal or external measuring device.
* The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.

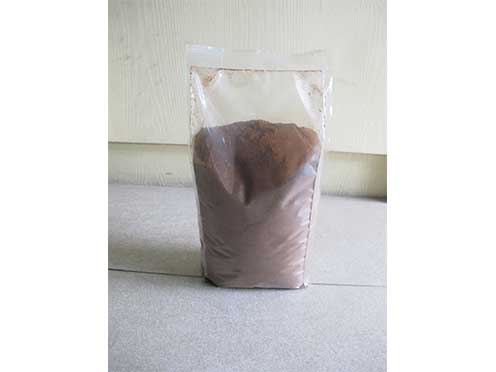

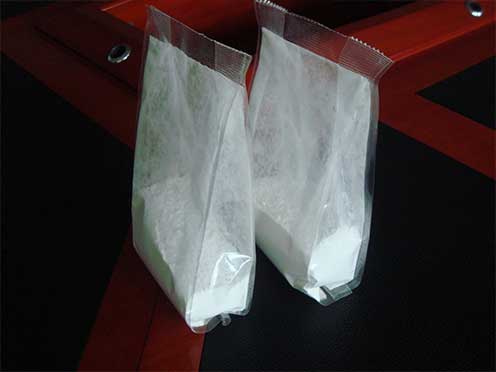

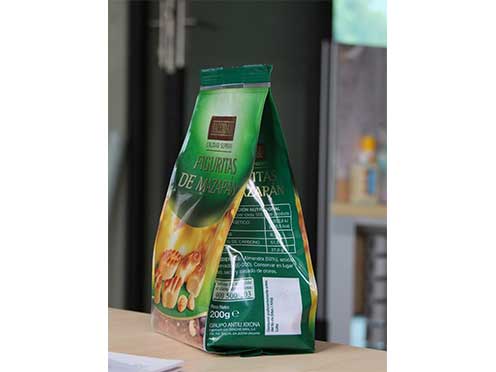

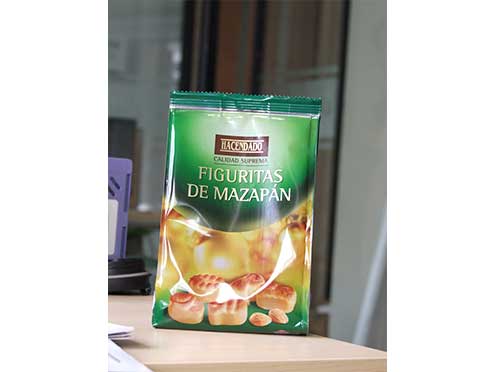

BAG TYPE

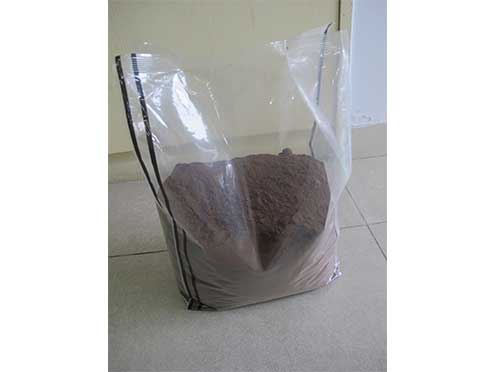

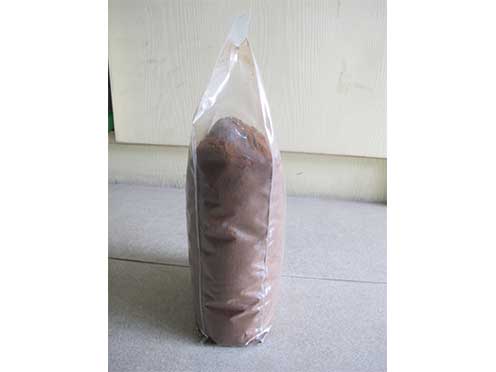

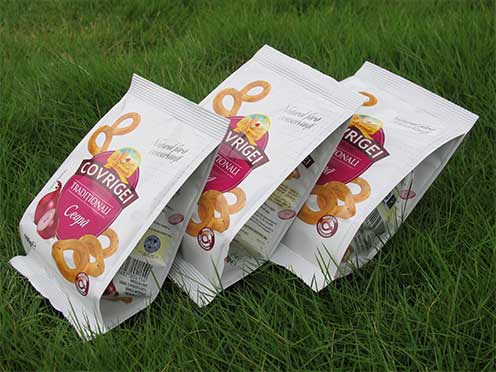

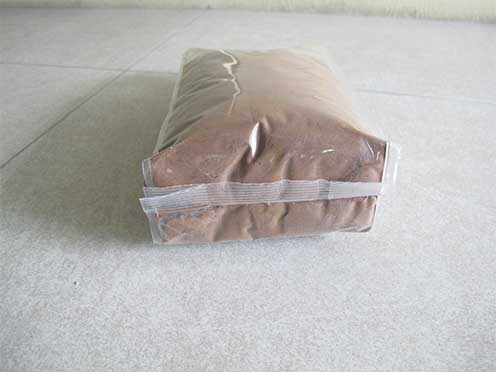

Quad seal bag
Quad seal bag
Quad seal bag
Quad seal bag
Quad seal bag
Quad seal bag
Quad seal bag
Quad seal bag
INQUIRY ONLINE

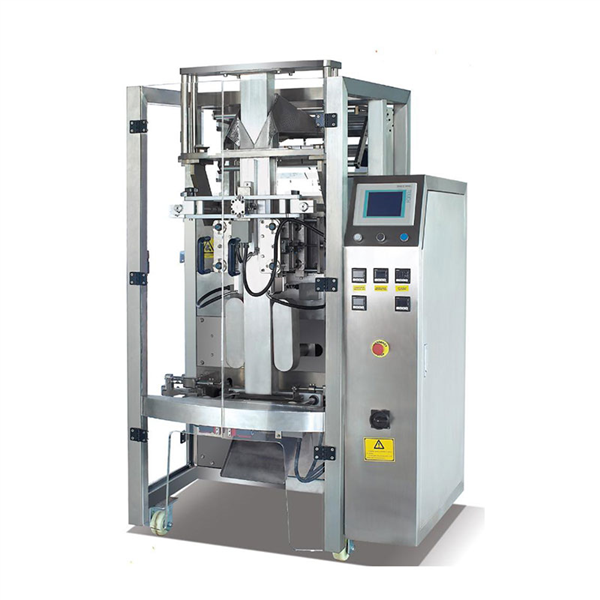

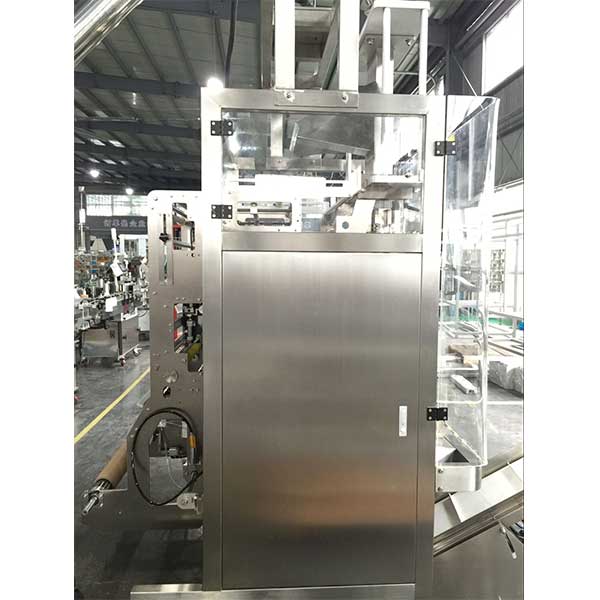

VFFS Quad Seal Bagger VT73
