Range of application
Snack - Chips - Popcorn - Puffed food - Dried fruits - Cookies - Biscuits - Candies - Nuts - Rice - Beans - Grains - Sugar - Salt - Pet food - Pasta - Sunflower seeds - Gummy candies - Lollipop - Sesame
|
Item |
Content |
|
Capacity |
*5-50 bags/min, depending on the measuring equipment, materials, product’s weight & packing film’ material. |
|
Accuracy |
*≤±1.5% , depending on the measuring equipment, materials, packing weight. |
|
Bag size |
Front width: 70-200mm Side width: 30-100mm Width of side seal:5-10mm. Bag length:100-350mm |
|
Film width |
Max 520mm |
|

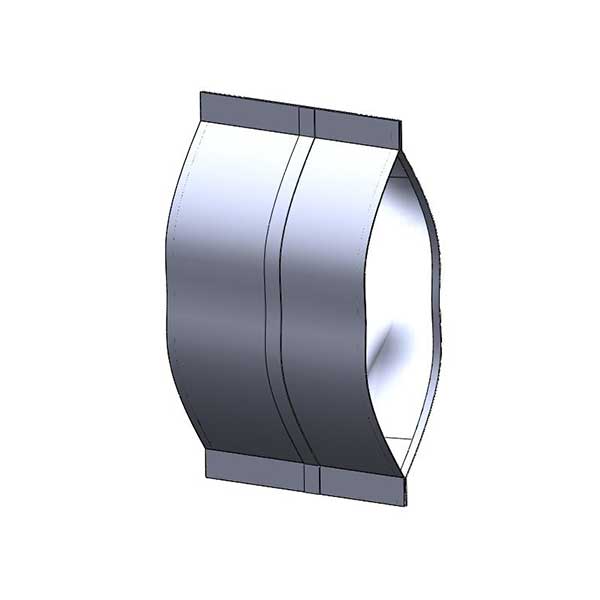

Bag type |
Stand-up bag (Quadro bag or 4 Edge seal bag), punching bag etc. |
|
Film thickness |
0.04-0.09mm |
|
Package material |
BOPP/VMCPP,PET/PE,BOPP/CPP, PET/AL/PE etc |
|
Air consumption |
0.8Mpa 0.35m3/min |
|
Total powder |
6kw |
|
Voltage |
380V 50/60HZ |
|
Air compressor |
Not less than 1 CBM |
|
Height |
Total about 4.3M |
INQUIRY ONLINE
product detail
Package product
Z-type conveyor
Output conveyor
The finished products conveyor have different models. The belt width can be 200mm, 300mm, 295mm, 435mm, etc. The belt material has PU, PVC, PP belt, or chain belt. The optional device is various speed drives.
Rotary table
The rotary table can collect finished products.
Diameter: 1000 mm
Height: 650 mm
Voltage: 220V/120 W
Supporting Platform
The sizes of supporting platform can be customized. Its sizes are depended by the sizes of packing machine and weigher. The platform can be made by stainless steel, also can be painted steel.

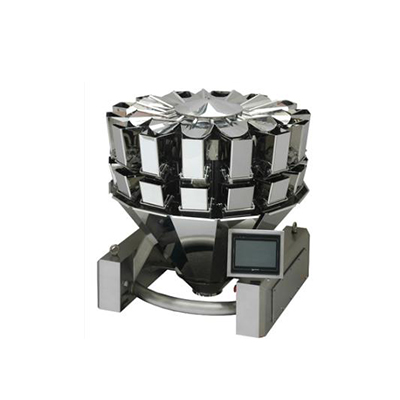

14 heads weigher
BAOPACK Packaging Machinery Co.,Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
Weigh Ranger: 10-2000g
Accuracy: 0.5-1.5g
Max Speed: 90 wpm
Weigh Volume: 2.5L
Hopper No.: 14
Control Panel: 10" touch screen
Driving system: stepper motor
Material : SUS304
Power supply: AC 110/220, 50/60 Hz
Power: 1.3kw
Size(L*W*H): 1245*1210*1388 mm
Weight: 430 kg
We have various models of weigher, such as 10 heads weigher, 14 heads weigher, 18 heads weigher, Salad weigher, linear weigher, and so on. Different products will be used different weigher. Please refers Package Measurement System of Flexible Solution.
Z-type conveyor
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
Output conveyor
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
The finished products conveyor have different models. The belt width can be 200mm, 300mm, 295mm, 435mm, etc. The belt material has PU, PVC, PP belt, or chain belt. The optional device is various speed drives.
Rotary table
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
The rotary table can collect finished products.
Diameter: 1000 mm
Height: 650 mm
Voltage: 220V/120 W
Supporting Platform
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
The sizes of supporting platform can be customized. Its sizes are depended by the sizes of packing machine and weigher. The platform can be made by stainless steel, also can be painted steel.
INQUIRY ONLINE

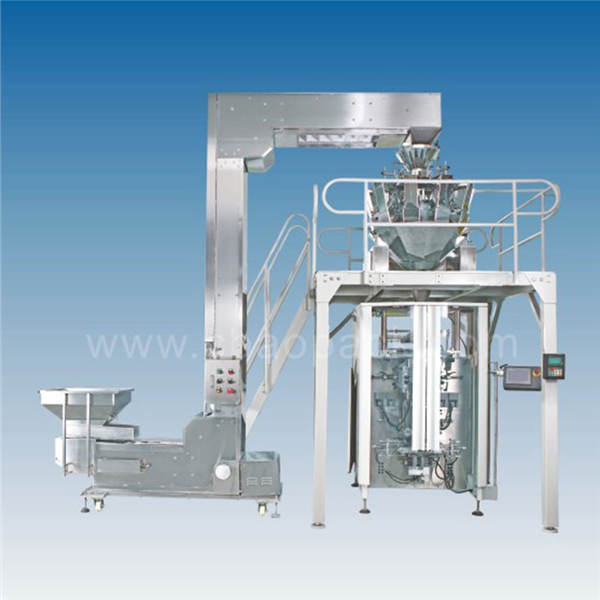

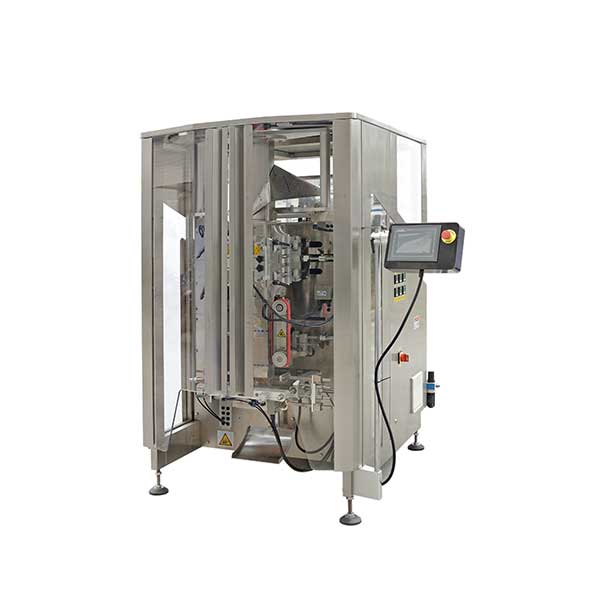

VFFS Quad Seal Bag Packing Machine VT52A with Multi Heads Weigher
