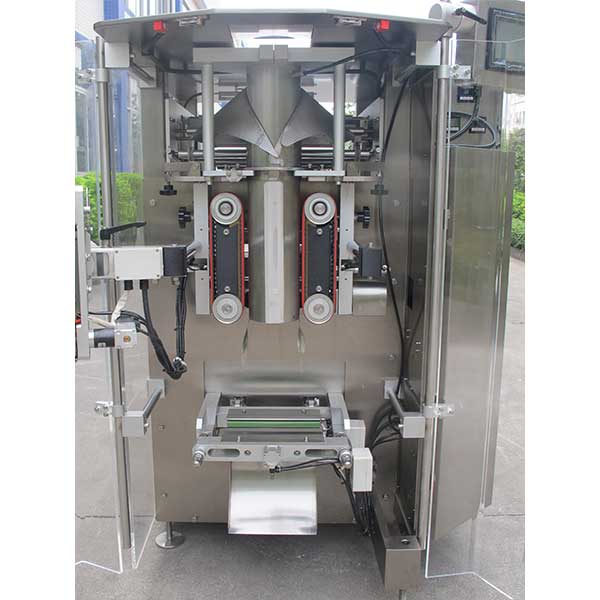

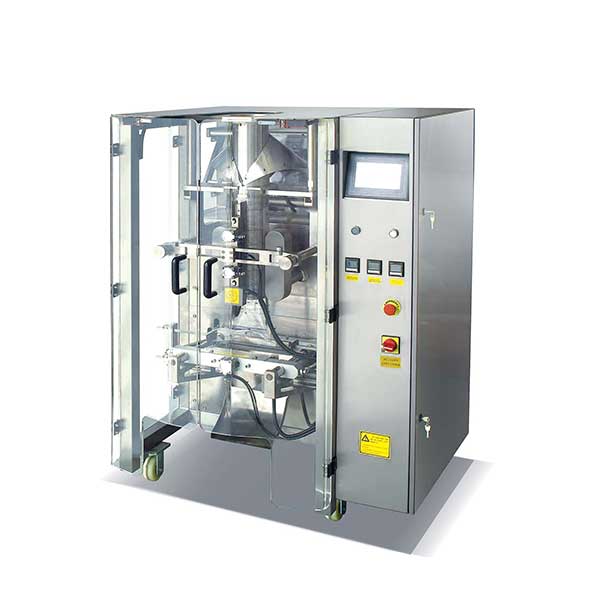

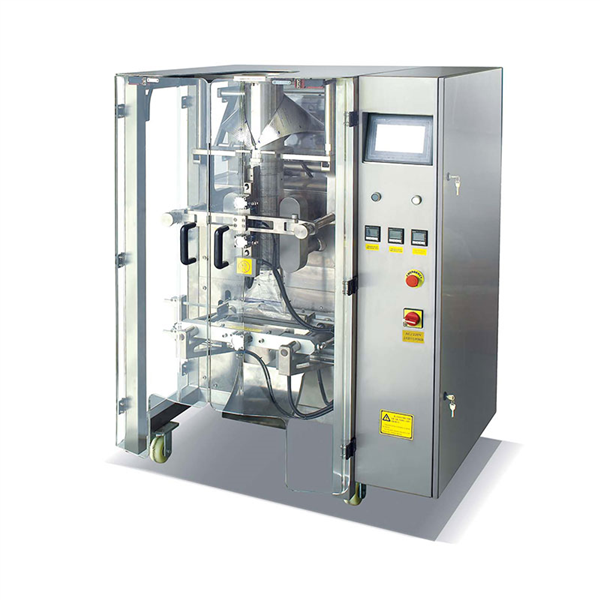

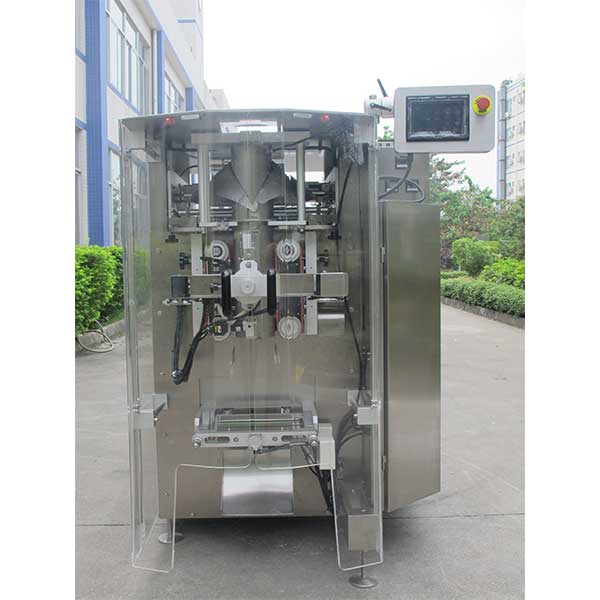

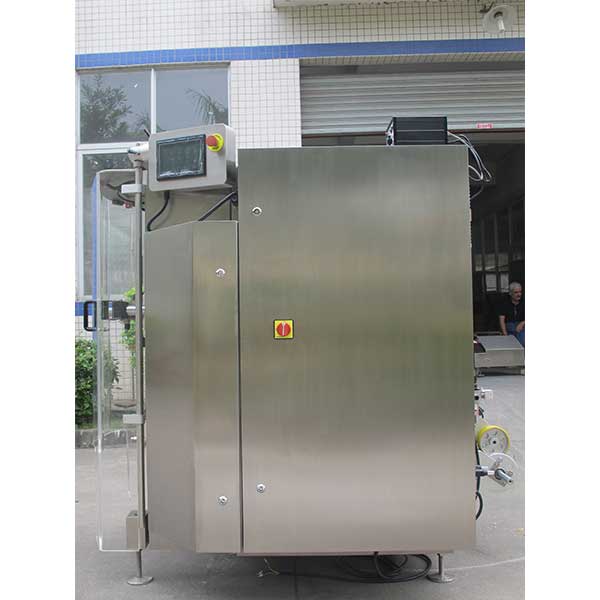

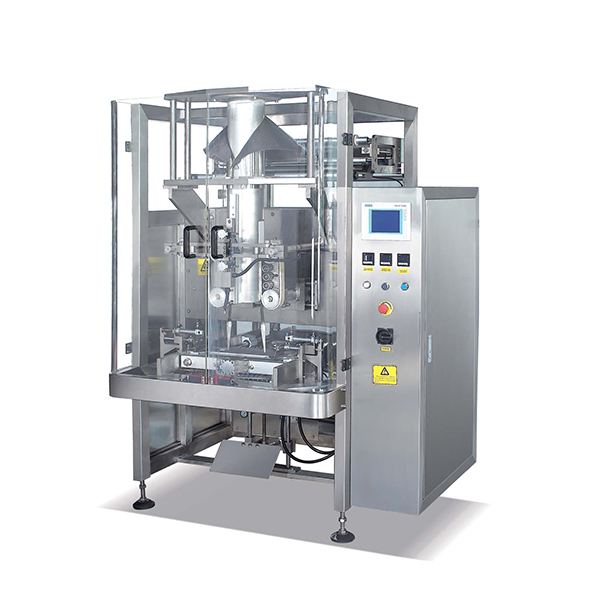

VFFS Pillow/Gusseted/Chained High Speed Bagger VG52

Items	Content
Model	VG52
Bag size	(L)50-350mm (W)90-250mm
Type of bag making	Pillow bag, sgusset bag
Film width range	120-520mm
Film thickness	0.04-0.09mm
Max packaging speed	150bags/min
Packing film material	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE,PET/PE,etc
Air consumption	0.8Mpa 0.3cmb/min
Voltage	5.6KW 380V 50/60Hz
Dimension	(L)1900(W)1180H1550 (L)1950(W)1180H1650
Net weight	800kg

INQUIRY ONLINE

product detail

Features

Utilizes a renowned brand's PLC control system and a large touch screen for convenient operation.
Servo control for the film drawing down system and horizontal sealing, ensuring precise and efficient operations.
It has the capability to handle multiple tasks, including feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, and delivering finished products when equipped with appropriate feeding and measuring equipment.
The machine's bag-making process is versatile, allowing it to produce both pillow-type bags and standing bags to meet specific customer requirements.

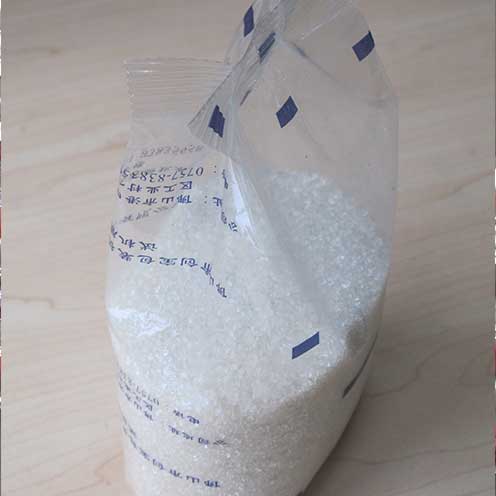

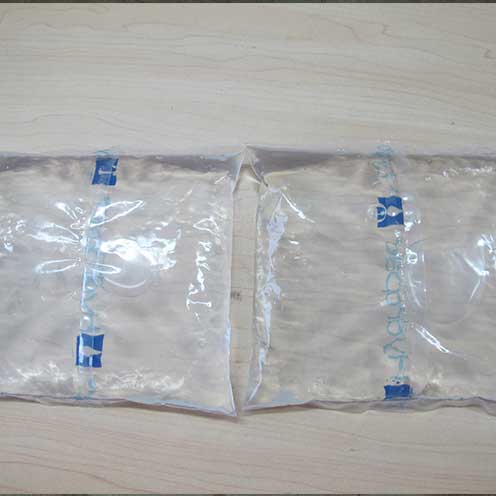

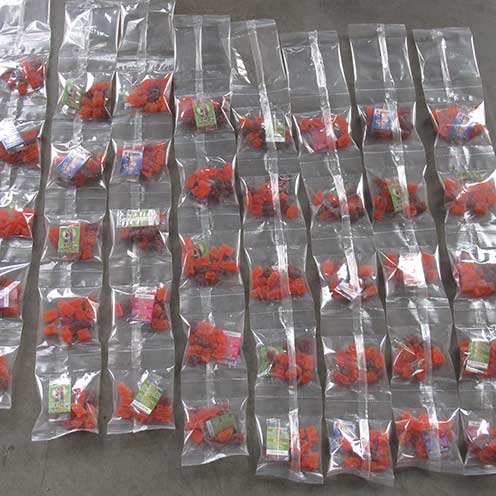

BAG TYPE
