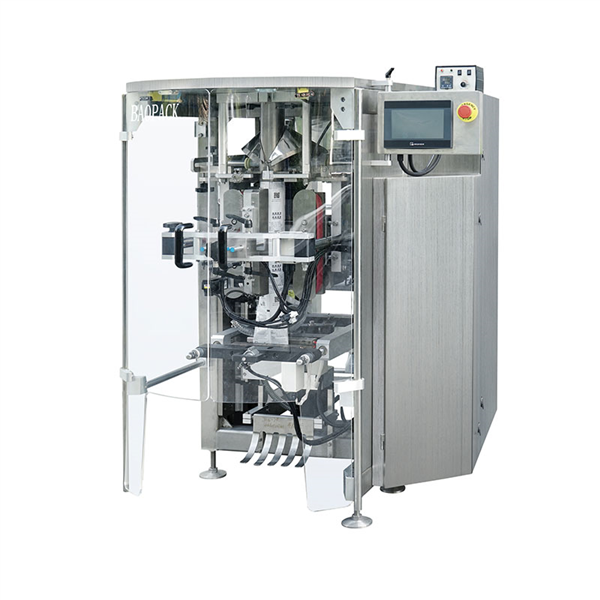

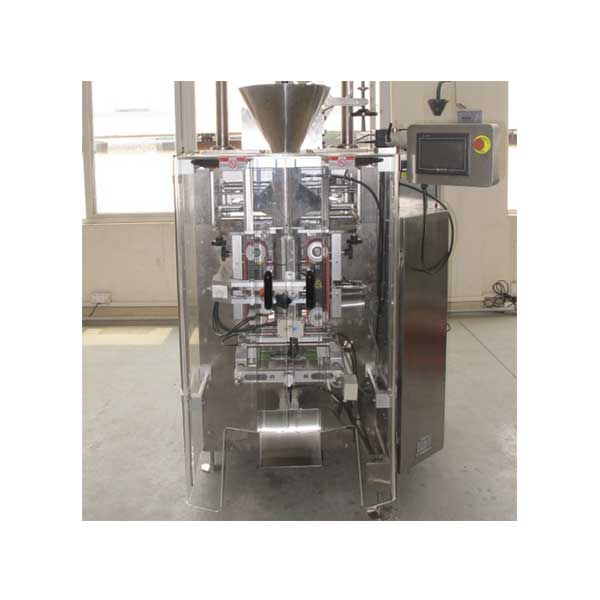

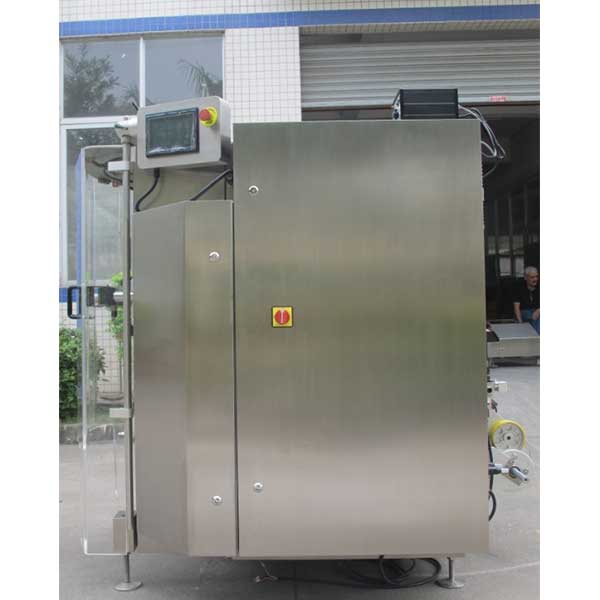

VFFS Pillow/Gusseted/Chained High Speed Bagger VG42A

Item	Contents
Model	VG42A
Max packing speed	150bags/min
Bag size	(L)50-300 (W) 90-200mm
Type of bag making	Pillow bag/gusset bag
Film width range	120-420mm
Film thickness	0.04-0.09m
Packing film material	BOPP/CPP, BOPP/VMCP, BOPP/PE, PET/VMPET/PE, PET/PE, ect
Air consumption	0.8Mps 0.3m³/min
Voltage	5.6KW 380V 50/60Hz
Dimension	(L)1900x(W)1180x(H)1550 (L)1950x(W)1180x(H)1650
Net Weight	700KG

INQUIRY ONLINE

product detail

Technical adavantage

The machine is controlled by three servor motors, with continuous pulling film system and of maximum speed which can catch 150 bags/min.

New exterior appearance and combined type of frame are made the machine become more precision on the whole.

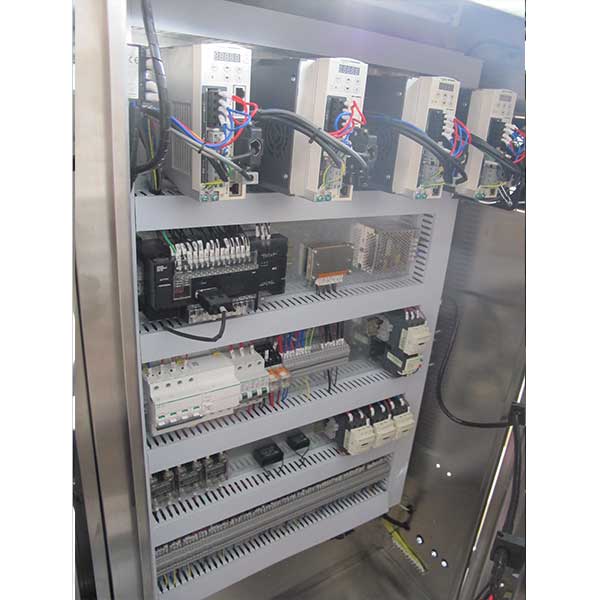

The electric box which can be moved combined to the whole machine handily as well as the touch screen does.

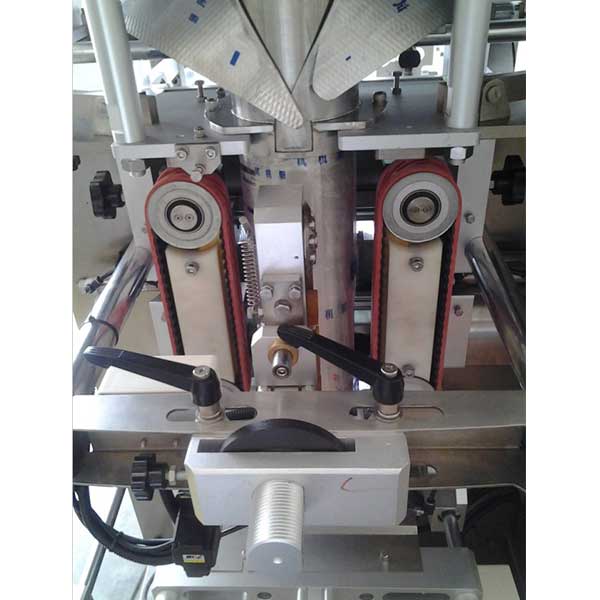

The Servo Pulling Film System comprises the vacuum pump and planetary gear reductor. It works stably and has long performanc lifte.

Over 90% spare parts are stainless material, Also electrical aparatus elements are world famous brands.

Automatic correction system makes tracking and positioning more accurately

It is easy to adjust the novel vertical sealing structure and deveeloped horiaontal sealing structure because of adopting gravity balance system

Teh film pulling frame is simple design, easy to adjust the eye mark and install the film

It is vonvenient for user operate the machine by the separate film installation system of the film pulling frame

Optional Device

Filling nitrogen device, punching jaws, chain bag making device, gusseted device

Air inflation device, euroslot device, sstrip bag device, gusset device, ect.

Baopack's 4 side sealing bag packing machine is a versatile and economical solution for producing rectangular or rectangular four aspect sealed sachets packets. It boasts a PLC control system and a user-friendly touchscreen, allowing it to efficiently produce 100-120 sachet packs per minute.

This packing machine is highly adaptable and can be used for various products, including free flowing, non-free flowing, and liquid paste items. It finds extensive applications in packaging food, sachet sugar, ketchup, mayonnaise, beverages, pharmaceuticals, cosmetics, and chemicals. The machine's reliability is evident as it can handle sachets ranging from 40mm by 40mm to 200mm by 200mm, with adjustable pack sizes. It's capable of accommodating larger packs, such as instant soups.

Designed for preparing sachet-type applications affixed on all four sides, this fully automated 4 side sealing bag packing machine is also equipped to handle untouched liquid products. The unique pumps enable packaging of various liquid and gel-like substances, including ketchup, mayonnaise, liquid soap, shampoo, conditioner, gel, and more. Numerous reputable food, cosmetic, and pharmaceutical brands have used this 4 side sealing bag packing machine for liquid and paste products. Its advantages include high weight accuracy, excellent seal integrity to protect the contents, ease of use, and a high-quality output.

BAG TYPE
