1
|
Items |
Content |
|
Capacity |
40 bag/min (Specific speed depends on bag length, film material, product, etc.) |
|
Bag size |
Front width: 90-280mm |
| Side width: 40- 150mm | |
| Width of edge sealing: 5-10mm | |
| Length: 150-470mm | |
|
Bag type |
Quad-seal bag |
|
Reel film width |
280- 730mm |
|
Film thickness |
0.04-0.09mm |
|
Air consumption |
0.8Mps 0.3m3/min |
|
Main power/voltage |
4.6KW/ 220V 50/60Hz |
|
Dimension |
1680*1610*2050mm |
|
Weight |
900kg |
INQUIRY ONLINE
product detail
Features
* Attractive bag type to satisfy your high demand.
* It completes bagging, sealing, date printing, punching, counting automatically;

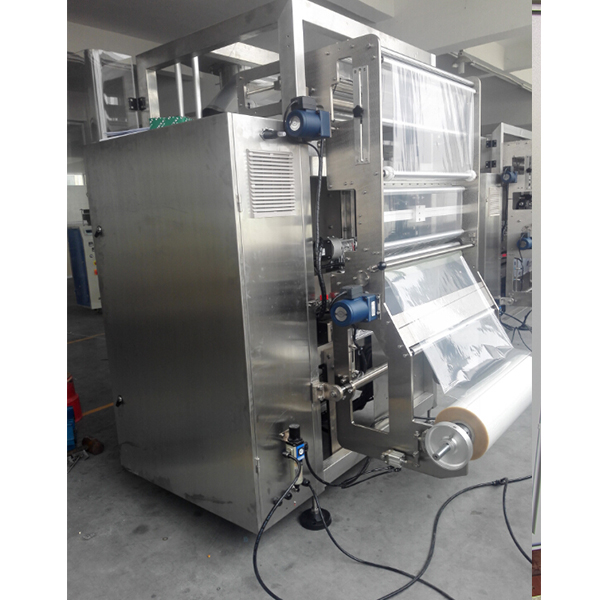

* Film drawing down system controlled by servo motor. Film rectifying deviation automaticlly;

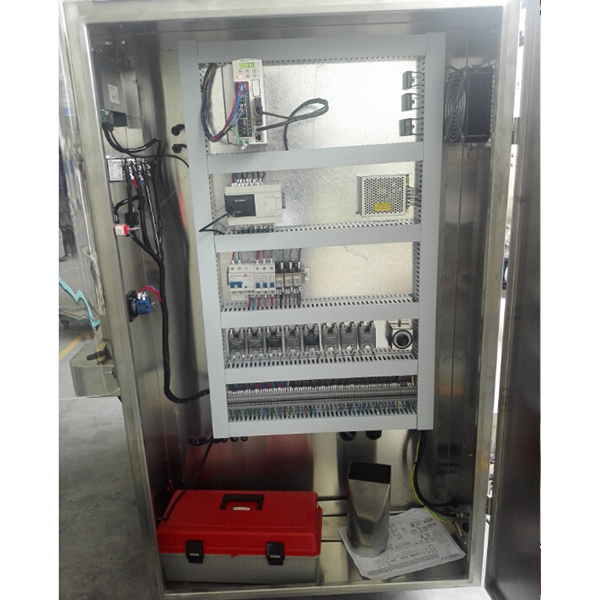

* Famous brand PLC. Pneumatic system for vertical and horizontal sealing;
* Easy to operate, low maintenance, compatible with different internal or external measuring device.
* The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.
BAG TYPE
Pillow bag
Pillow bag
Pillow bag
Pillow bag
Pillow bag
Pillow bag
Pillow bag
INQUIRY ONLINE

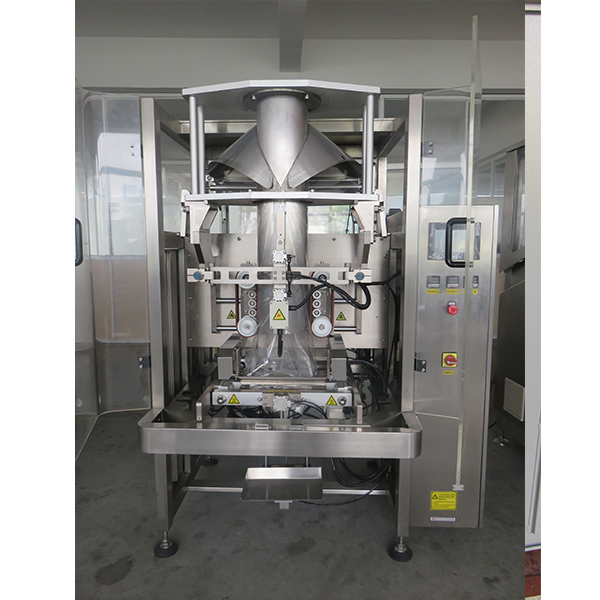

VFFS Pillow/Gusseted Bagger VP73
