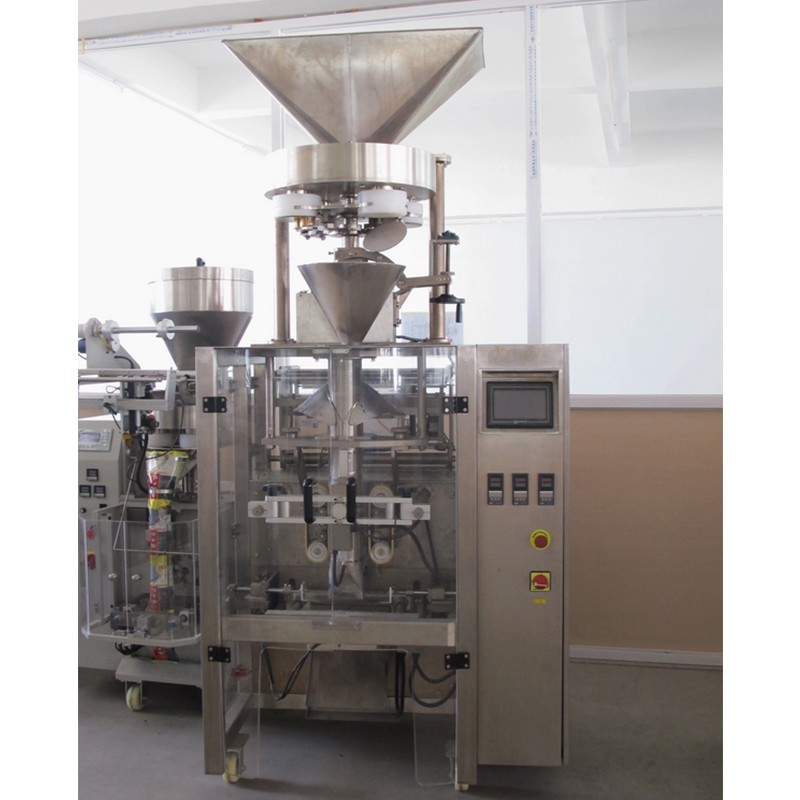

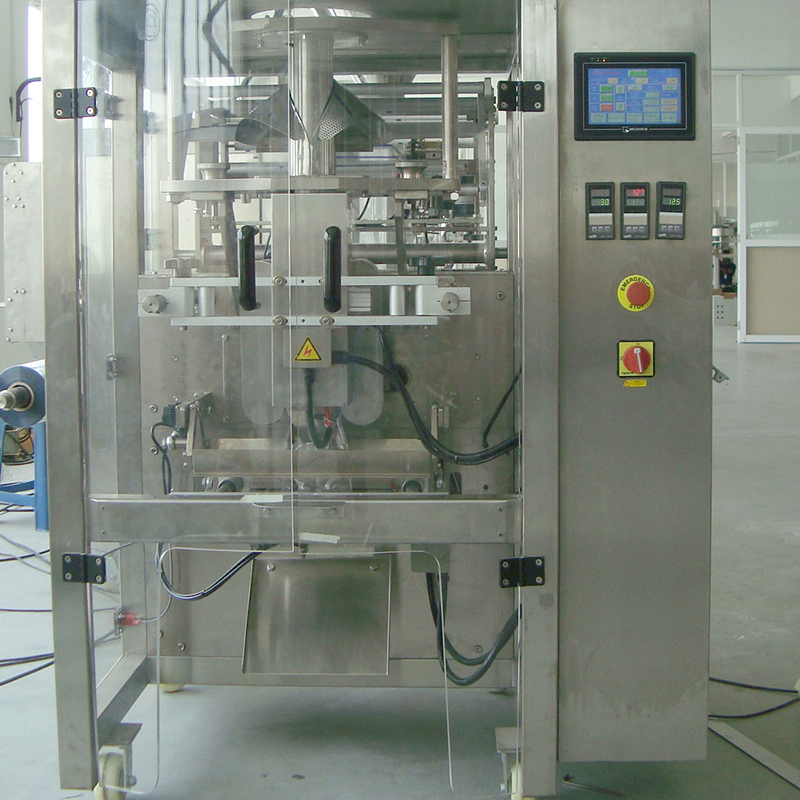

VFFS VP52B with Volumetric Cup Device

Range of application

Snack - Chips - Popcorn - Puffed food - Dried fruits - Cookies - Biscuits - Candies - Nuts - Rice - Beans - Grains - Sugar - Salt - Pet food - Pasta - Sunflower seeds - Gummy candies - Lollipop - Sesame

Item	Content
Capacity (estimate)	30-50 bags/min / machine according to the bag sizes, it is also affected by the quality of film and bag length.
Accuracy	≤±1.5%, depending on the measuring equipment & materials
Bag size	(L)50-350 mm (W)50-250 mm
Film width	Max 520mm
Bag type	Pillow bag,punching hole bag,gusseted bag
Pulling belt type	Double-belts pulling film
Film thickness	0.04-0.09mm
Film material	BOPP/VMCPP,PET/PE,BOPP/CPP, PET/AL/PE etc
Air consumption	0.8Mpa 0.3m³/min
Total power	6.045 KW (depend on the specific circumstances.)
Voltage	Single phase220V, three phase380V, 50HZ (depend on the customer’s country)
Air compressor	Not less than 1 CBM

INQUIRY ONLINE

product detail

Package product

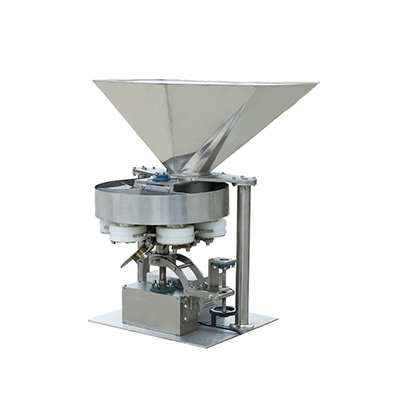

volumetric-cups-device

adjusting the capacity by turning the screw under the turn table;

View More
Output conveyor

The finished products conveyor have different models. The belt width can be 200mm, 300mm, 295mm, 435mm, etc. The belt material has PU, PVC, PP belt, or chain belt. The optional device is various speed drives.

View More
Rotary table

The rotary table can collect finished products.

Diameter: 1000 mm

Height: 650 mm

Voltage: 220V/120 W
View More

Successful Cases

VFFS VP42II (double servo motors) with 14 heads weigher

VFFS VP42 with 10 heads weigher

VFFS VP52B with Stick weigher

VFFS VP52IIB (double servo motors) with 14 heads weigher

VFFS High speed machine VG42 with multi heads weigher

volumetric-cups-device

BAOPACK Packaging Machinery Co.,Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.

Five sets of adjustable meter cup to fix quantity, suitable for grain material with good fluidity;
adjusting the capacity by turning the screw under the turn table;
it has the smallest capacity when the inner and outer glass of meter glass are overlapped, and the vertical amplitude of accommodation is 30%. Supported with fixed or movable hair brush according to different material;
speed of quantity fixing: 20-80 times/minute( adjustable)

We have various models of weigher, such as 10 heads weigher, 14 heads weigher, 18 heads weigher, Salad weigher, linear weigher, and so on. Different products will be used different weigher. Please refers Package Measurement System of Flexible Solution.

Output conveyor

BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.

The finished products conveyor have different models. The belt width can be 200mm, 300mm, 295mm, 435mm, etc. The belt material has PU, PVC, PP belt, or chain belt. The optional device is various speed drives.

Rotary table

BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.

The rotary table can collect finished products.

Diameter: 1000 mm

Height: 650 mm

Voltage: 220V/120 W
