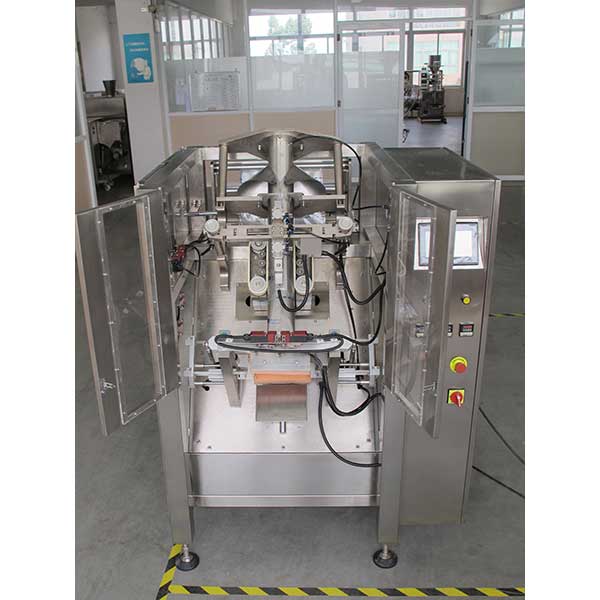

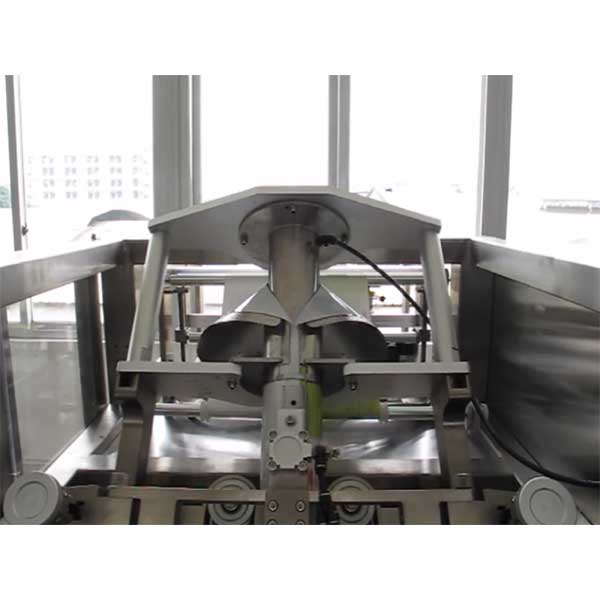

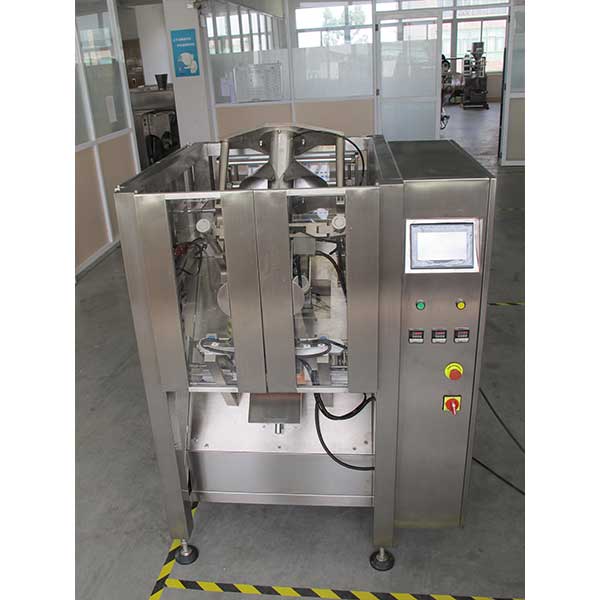

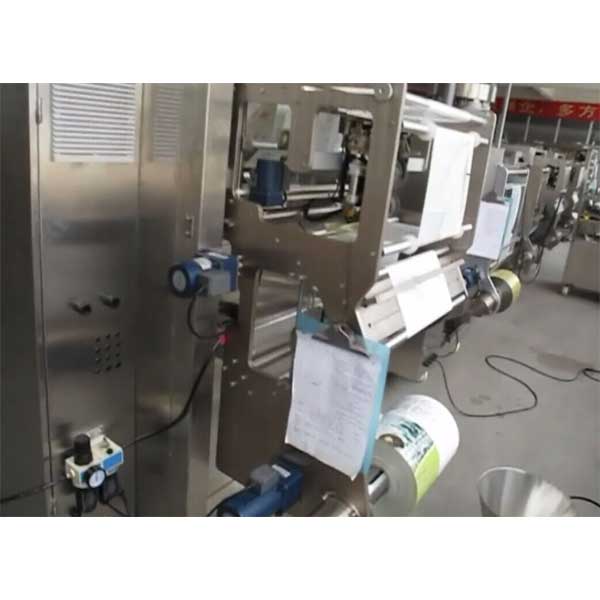

VFFS Inclined Pillow/Gusseted Bagger VQ52

Items	Content
Capacity	60 bag/min ( Specific speed depends on bag length, film material, product, etc.)
Bag size	(L)50-350mm (W)50-250mm
Bag type	Pillow-type bag, standing-bevel bag, punch bag
Filling range	150-2000ML
Max film width	Max 520mm
Film thickness	0.04-0.09mm
Air consumption	0.8Mps 0.4m3/min
Main power/voltage	2.5KW/ 220V 50Hz
Dimension	L1500W1140H1540mm
Weight	680kg

INQUIRY ONLINE

product detail

Features

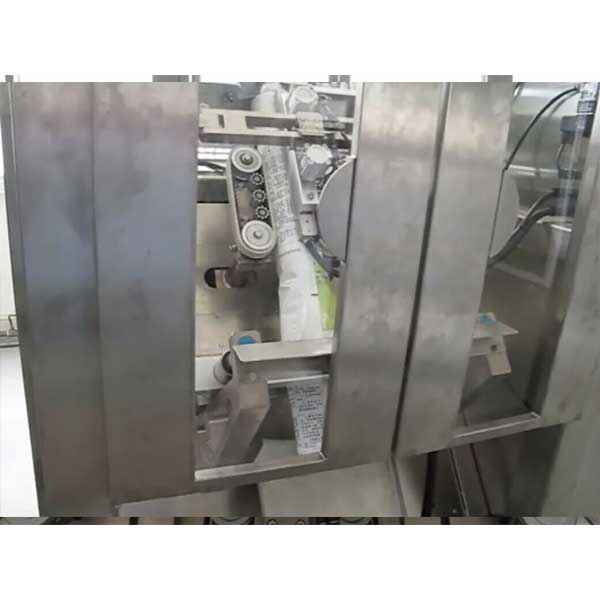

* Film drawing down system controlled by servo motor.

* Automatic film rectifying deviation function;

* Various alarm system to reduce waste;

* It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment;

* The way of bag making: the machine can make pillow-type bag and standing-bevel bag, punch bag or according to customer’s requirements.

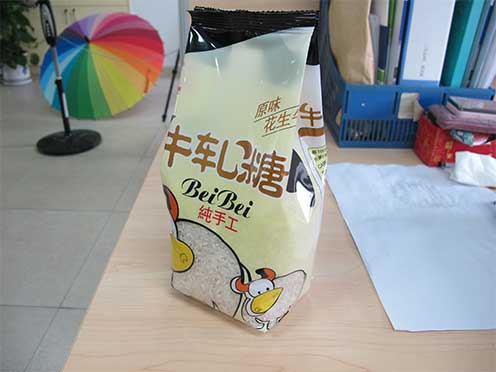

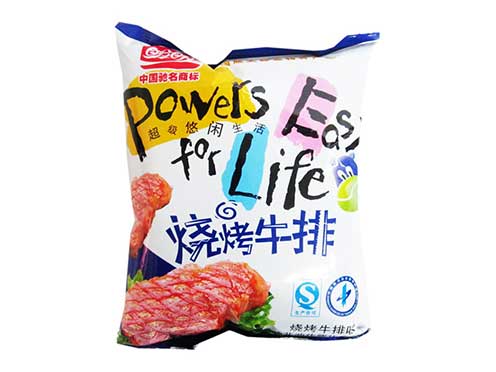

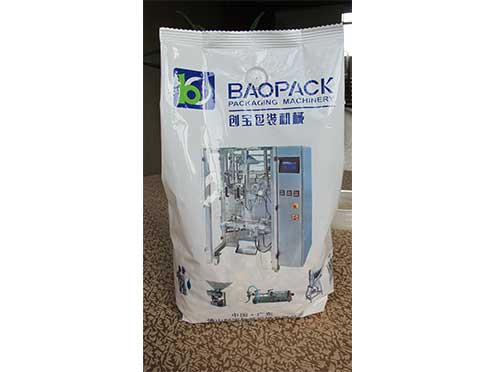

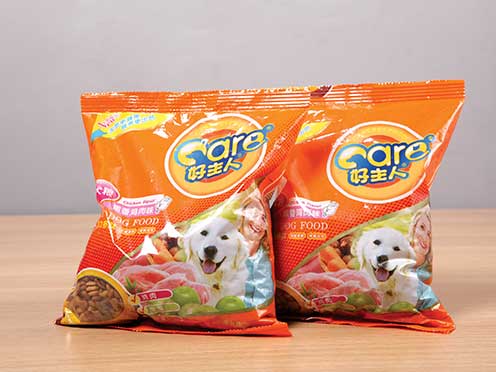

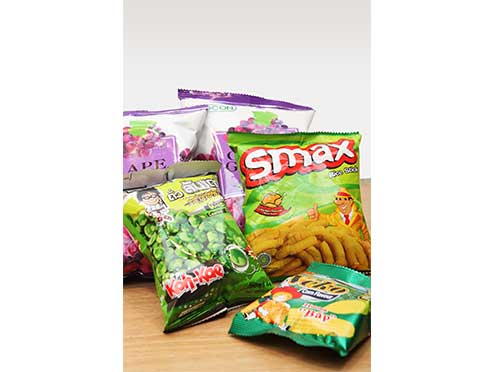

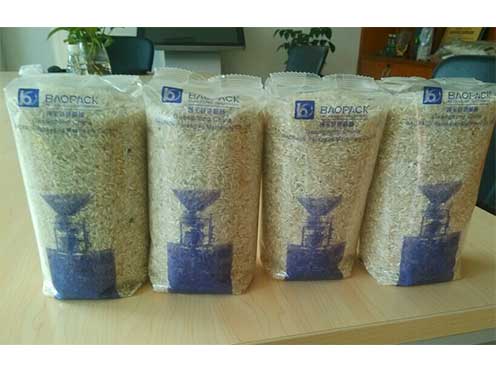

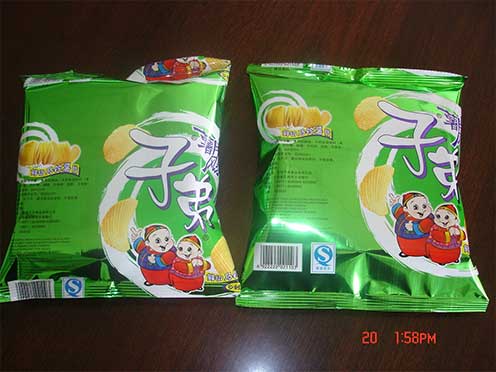

BAG TYPE
