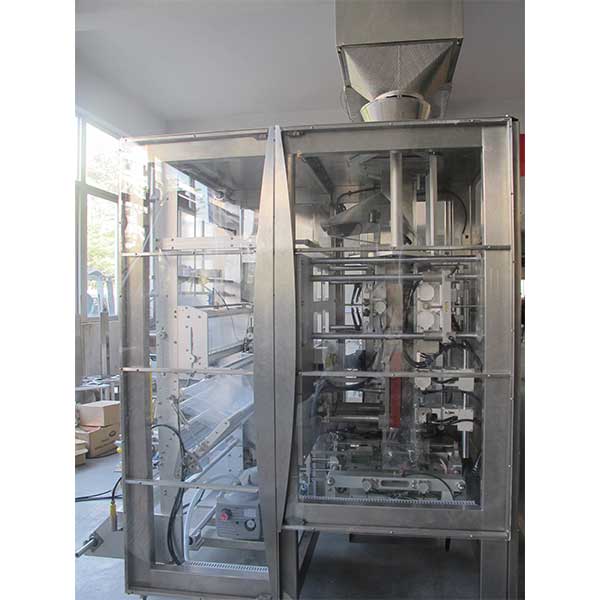

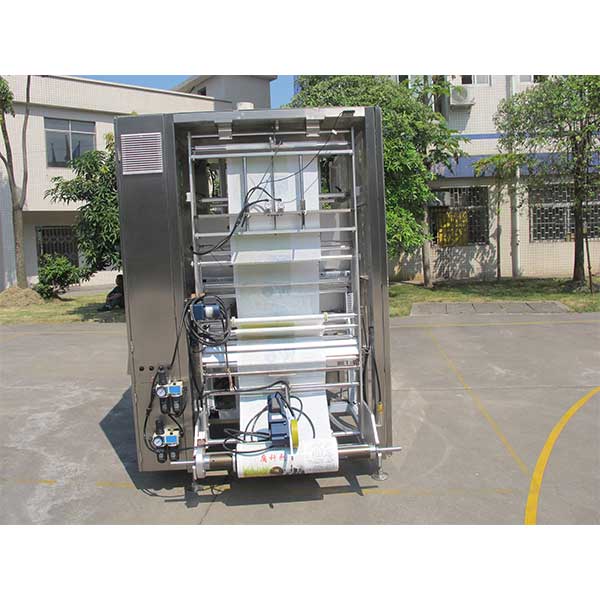

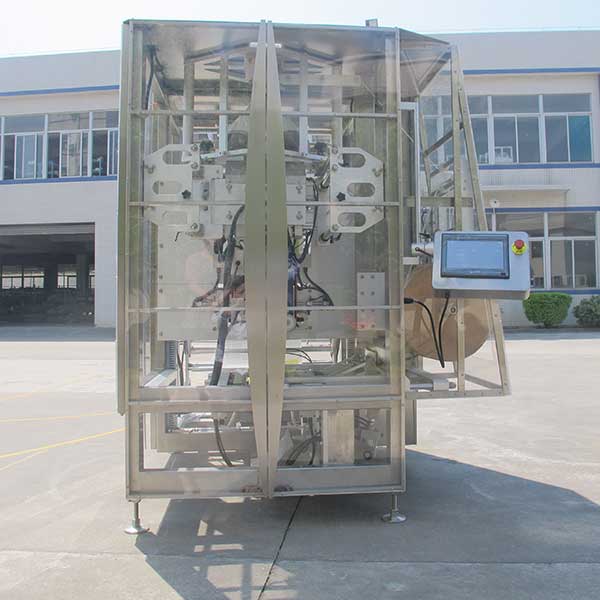

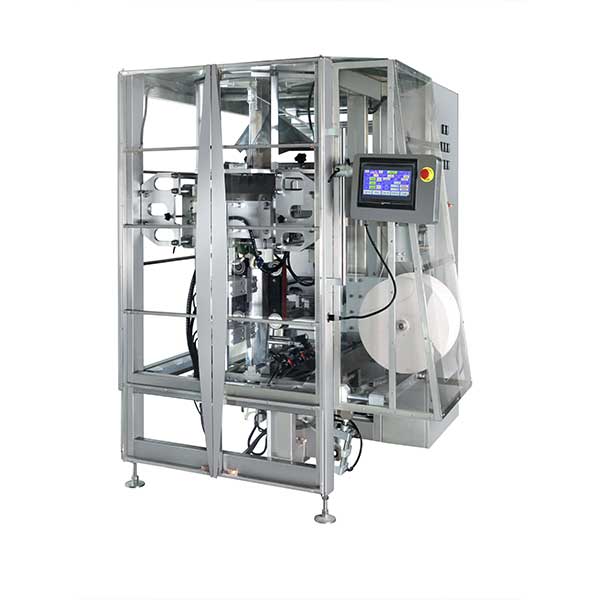

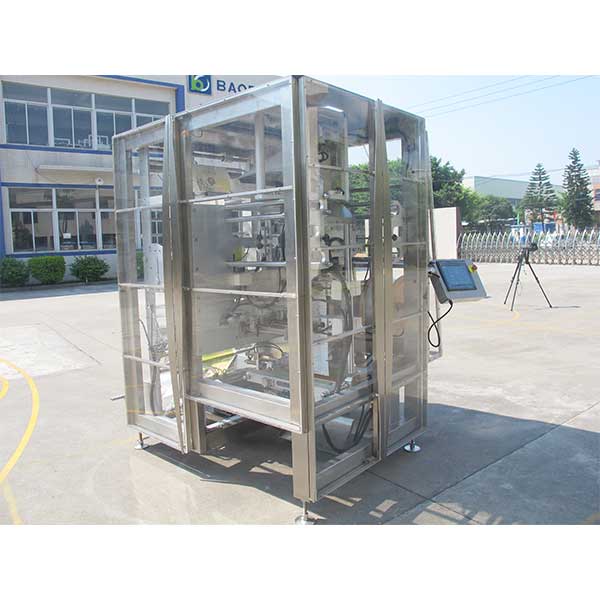

VFFS Doy-Pack Bagger VM52

Model	CB-VM52
Packing speed	40bag/min
Film width range	300mm-520mm
Bag size	(L)40mm-130mm(W)95mm-180mm
Bay type	Standand Doy-pack with Zipper
Bottom gusset depth	40-80mm
Film thickness	0.04-0.09mm
Air consumption	0.8Mps 0.7m³/min
Power supply	5.3KW 220V 50Hz/60Hz
Dimmension	(L)1920*(W)1460(H)2100mm
Weight	750

INQUIRY ONLINE

product detail

Technical advantages

More than 95% spare parts are made of stainless steel. It can be used in the humid environments stably and keep long time running;

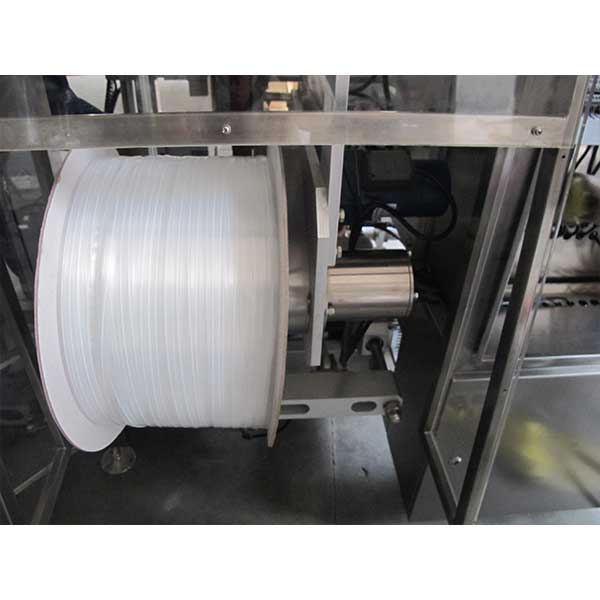

All controlled by servo motor with planetary gear box. There are belts and vacuum pump control pulling film system.
High standard bag type for market promotion. There are zipper, punching hole, and easy-tear mouth can be chosen.
Servo or cylinder can be chosen for horizontal sealing;
The bottom sides sealing and vertical sealing controlled by screw mandrel to adjust different size.
With patent right for the Wrinkle tensioning device to keep the ice bag sealing.
The forming tube with five-sides design, to make the perfect bag type and keep it nice.

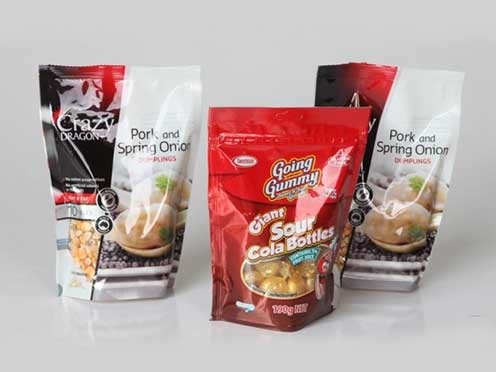

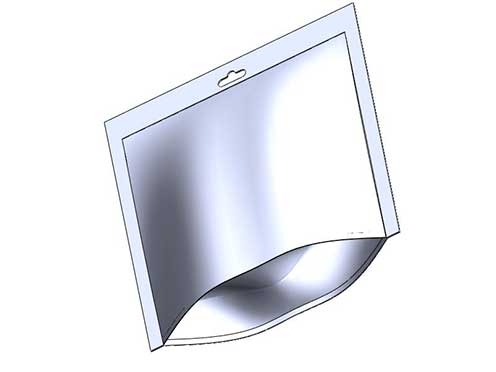

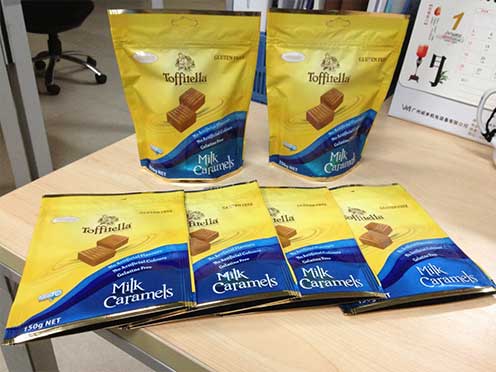

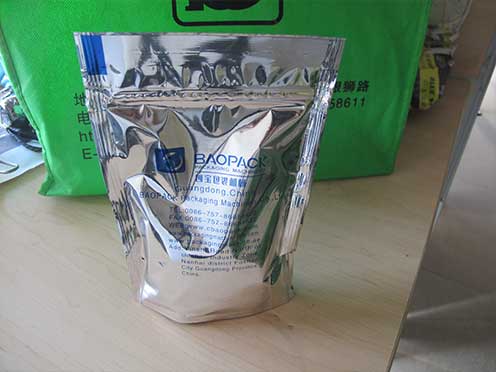

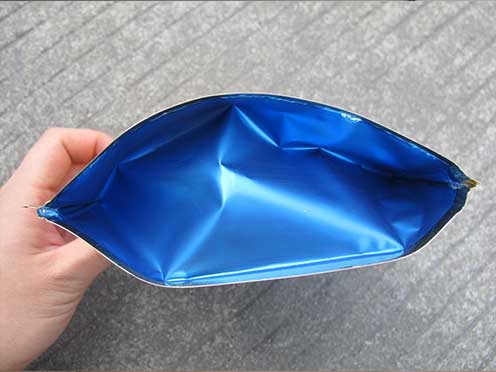

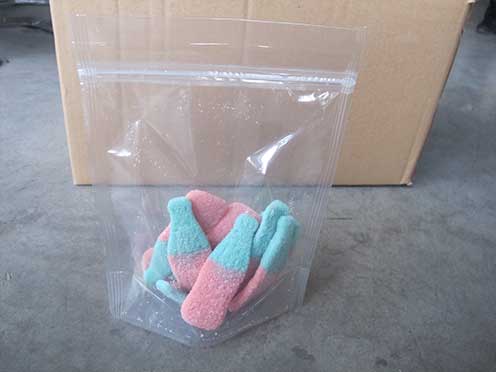

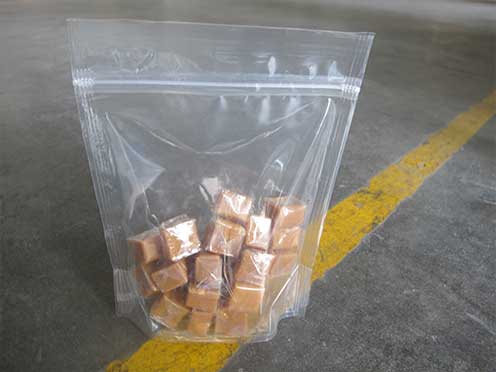

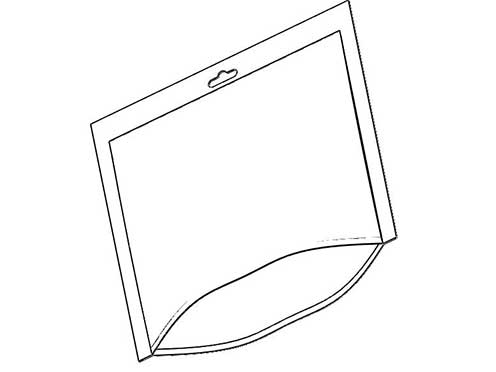

BAG TYPE
