1
|
Item |
Content |
|
Model |

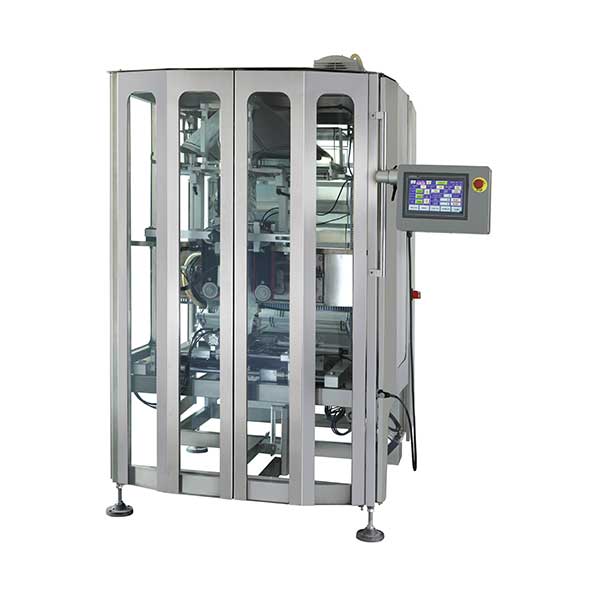

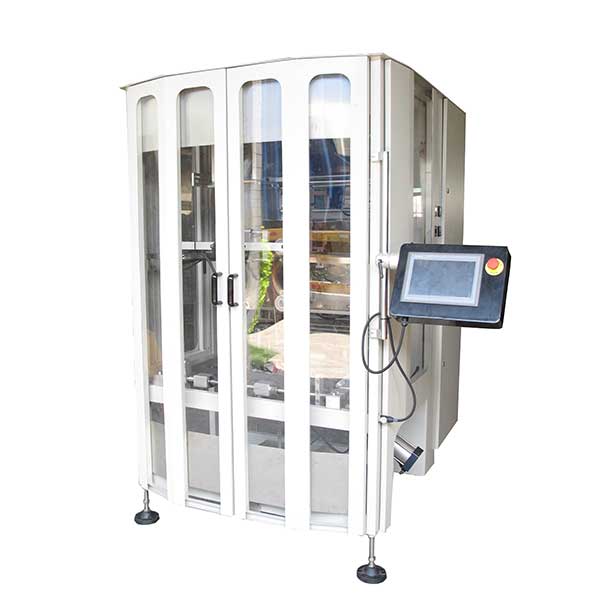

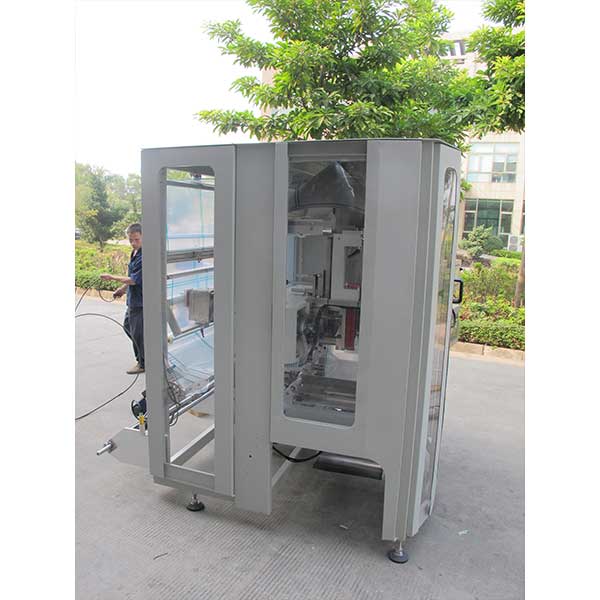

CB-VS82 |
|
Packing speed |
40bag/min |
|
Film with range |
300mm-820mm |
|
Bag size |
(L)150-510mm(W)150-410mm |
|
Bag type |
4 Side-seal bag 、punching bags |
|
Film thickness |
0.04-0.09mm |
|
Air consumption |
0.8Mps 0.5m3/min |
|
Power supply |
6.0KW 220V 50/60Hz |
|
Dimension |
(L)2120*(W)1580*(H)2000mm |
|
Weight |
800kg |
INQUIRY ONLINE
product detail

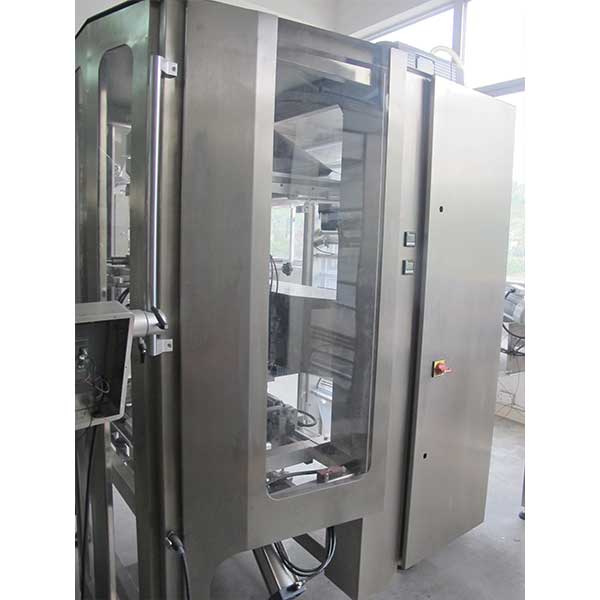

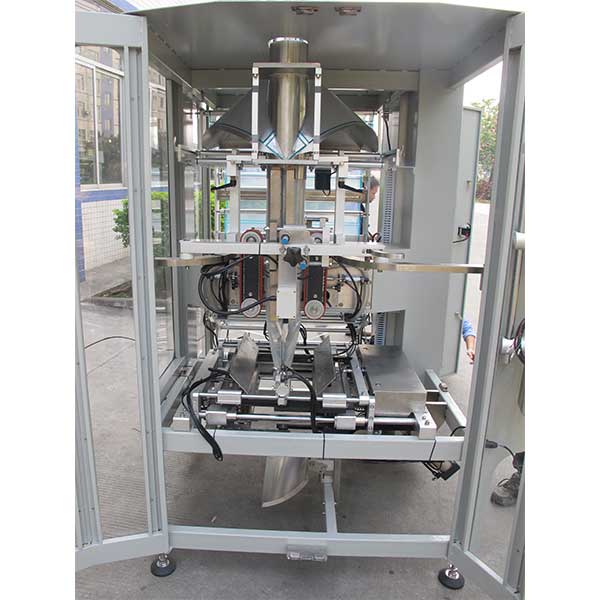

Technical advantage
The machine adopts module structure design to meet the individual needs of customers.
The main components with stainless steell, corrosion resistance, to adapt different environments of workshop.

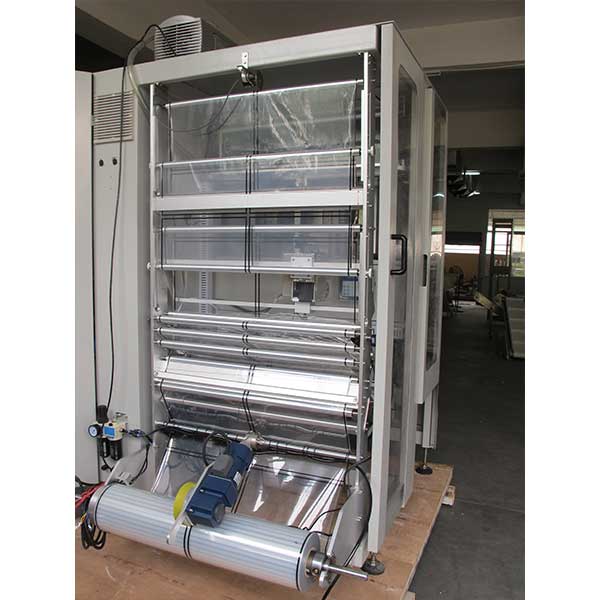

Simple filming-going shalt design, versatility, max film width up to 820mm.
Planetary gearbox, to enhance the stability of the machine, reducing abrasion, use for a long time.
New design for the wrinkle-free tensioning robot, to ensure the strong and rice sealing.
Vacuum pulling film and standard pulling film will be chooed.
Vertical sealing with bearing joints connect, to protect the cylinder, with mechanical lock structure, easy to change another fomer
Honrizontal controlled by servo motor, intensity, fast response.
The new design for the former, reduce the weight and lower cost.

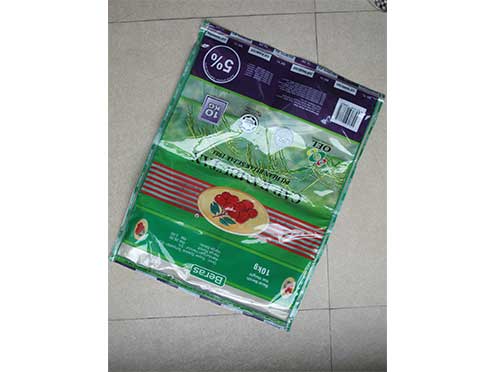

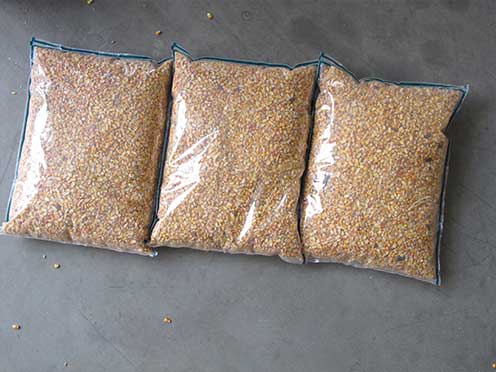

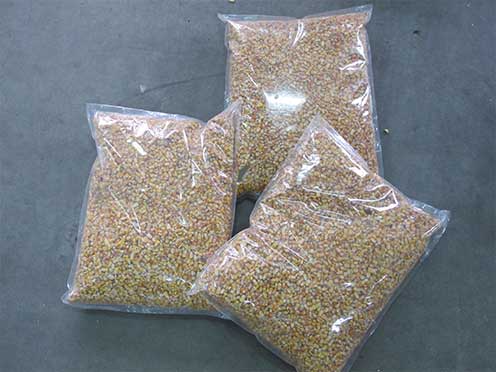

BAG TYPE

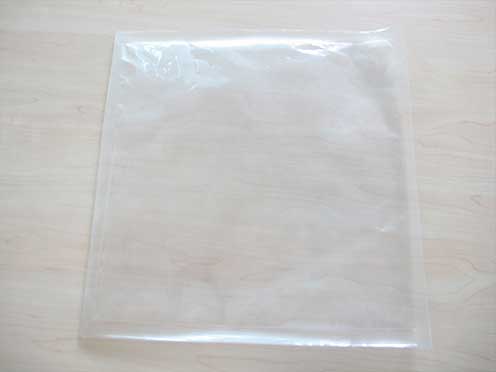

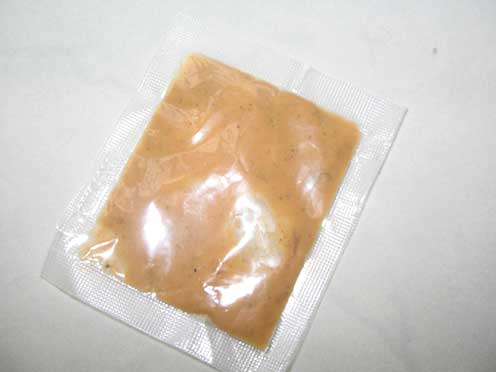

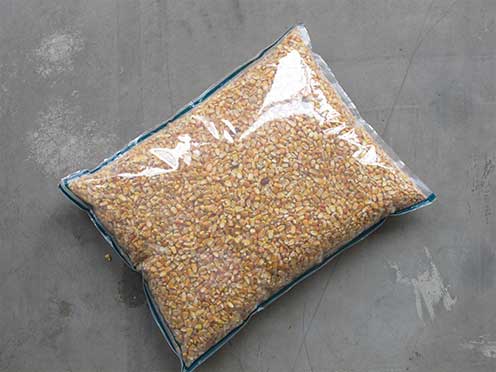

Four sides sealing bag
Four sides sealing bag
Four sides sealing bag
Four sides sealing bag
Four sides sealing bag
Four sides sealing bag
