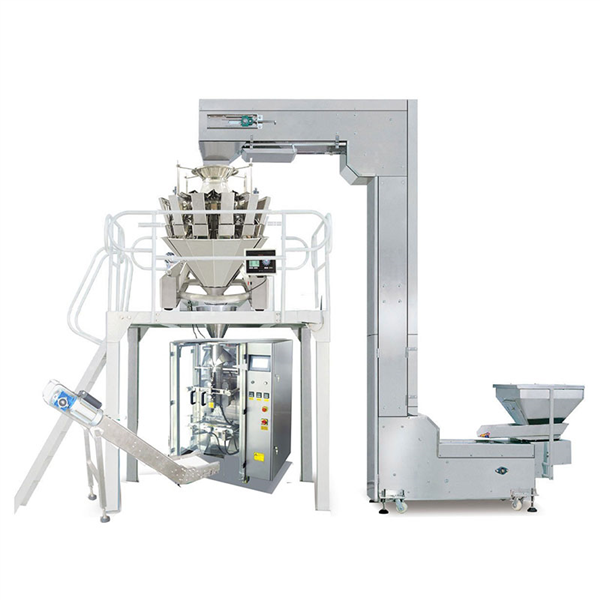

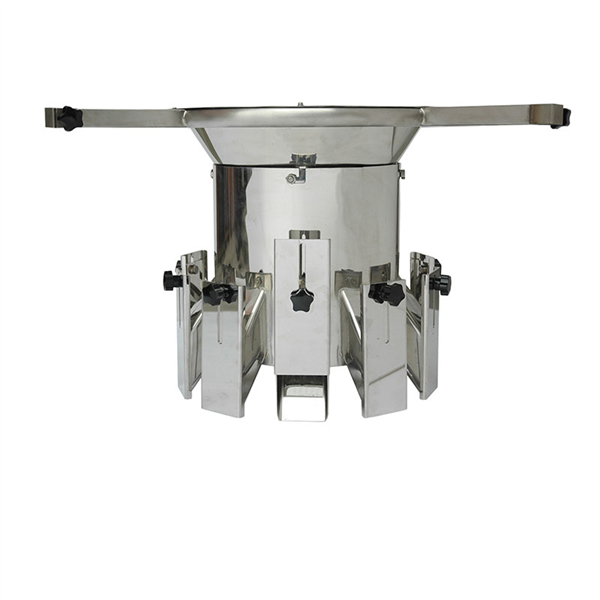

  • Vertical Packing Machine VP52B with 10 Heads Weigher and Sugar Doser

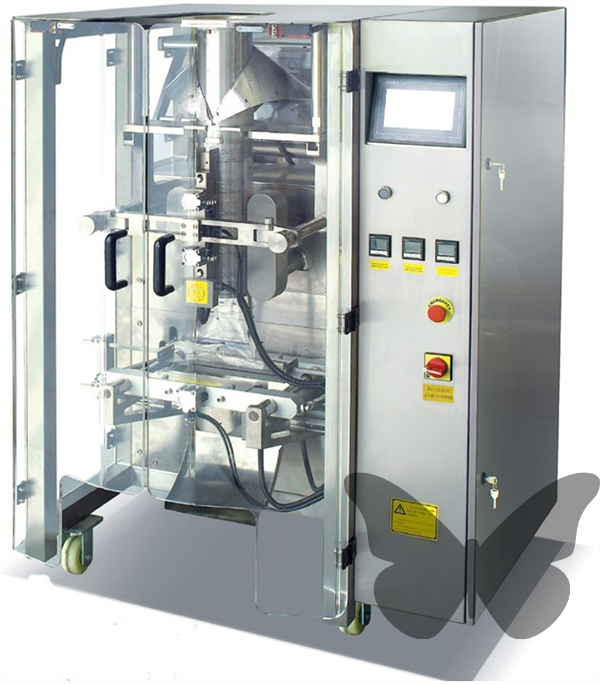

VFFS Pillow/Gusseted Bag Machine VP52B with Multi Heads Weigher and Sugar Doser

Packing Machine VP52B with 10 Heads Weigher and Sugar Doser

Range of application

Snack - Chips - Popcorn - Puffed food - Dried fruits - Cookies - Biscuits - Candies - Nuts - Rice - Beans - Grains - Sugar - Salt - Pet food - Pasta - Sunflower seeds - Gummy candies - Lollipop - Sesame

Item

 Content

Capacity (estimate)

500-1kg: 30-35 bag/min (depending on weight& packing film’ material.)

Accuracy

≤±1.5%, depending on the measuring equipment & materials

Bag size

(L)50-350mm(W) 50-250mm

Film width

Max 520mm

Bag type

Pillow bag,punching hole bag,gusseted bag

Pulling belt type

Double-belts pulling film

Filling range

10-2000ml

Film thickness

0.04-0.09mm

Film material

BOPP/VMCPP,PET/PE,BOPP/CPP, PET/AL/PE etc

Air consumption

0.8Mpa 0.3m³/min

Total power

6.1 KW

Voltage

Single phase220V, three phase380V, 50HZ

Air compressor

Not less than 1 CBM



INQUIRY ONLINE

product detail

Package product

  • 10-heads-weigher-small

    10 heads weigher

    Weigh Ranger 5-1000g
    Accuracy:0.2-1g

    View More
  • z-small

    Z-type conveyor

    Lifting height: Can be customized to meet customers’ requirement.
    Speed of lifting:0-17m/minute

    View More
  • output-conveyor

    Output conveyor

    The finished products conveyor have different models. The belt width can be 200mm, 300mm, 295mm, 435mm, etc. The belt material has PU, PVC, PP belt, or chain belt. The optional device is various speed drives.


    View More
  • rotary-table-08

    Rotary table

    The rotary table can collect finished products.
    Diameter: 1000 mm
    Height: 650 mm
    Voltage: 220V/120 W

    View More
  • platform-small

    Supporting Platform

    The sizes of supporting platform can be customized. Its sizes are depended by the sizes of packing machine and weigher. The platform can be made by stainless steel, also can be painted steel.

    View More

Successful Cases

Integrated line00

VFFS High speed machine VG42 with multi heads weigher

Candy and Nut00

VFFS doy bag packing machine with multi heads weigher

vp52b-packing-system


VFFS Pillow/gusseted bag machine VP52B with exhaust valve

sugar and salt00

VFFS pillow/gusseted bag machine VP52B with multi heads weigher and sugar doser

Dried-food00

VFFS Pillow/gusseted bag machine VP42 with multi heads weigher

10 heads weigher

BAOPACK Packaging Machinery Co.,Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.

10-heads-weigher-small



Weigh Ranger 5-1000g
Accuracy:0.2-1g
Max Speed:65wpm
Weigh Volume:1.3L
Hopper No:10
Control Panel:7 inch touch screen
Driving system:stepper motor
Material:SUS 304
Power supply:AC 110/220, 50/60 Hz
Power:1.0 kw
Size(L*W*H):1075*1050*1330 mm
Weight:340 kg

We have various models of weigher, such as 10 heads weigher, 14 heads weigher, 18 heads weigher, Salad weigher, linear weigher, and so on. Different products will be used different weigher. Please refers Package Measurement System of Flexible Solution.

Z-type conveyor

BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.

Lifting height: Can be customized to meet customers’ requirement.
Speed of lifting:0-17m/minute
Lifting quantity:9 or 12 cubic meter/hour
Bucket:2L or 4L, flat or dimple bucket
Power:750W
Voltage:380v

Output conveyor

BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.

output-conveyor

The finished products conveyor have different models. The belt width can be 200mm, 300mm, 295mm, 435mm, etc. The belt material has PU, PVC, PP belt, or chain belt. The optional device is various speed drives.

Rotary table

BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.

rotary-table-08
The rotary table can collect finished products.
Diameter: 1000 mm
Height: 650 mm
Voltage: 220V/120 W


Supporting Platform

BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.

The sizes of supporting platform can be customized. Its sizes are depended by the sizes of packing machine and weigher. The platform can be made by stainless steel, also can be painted steel.
