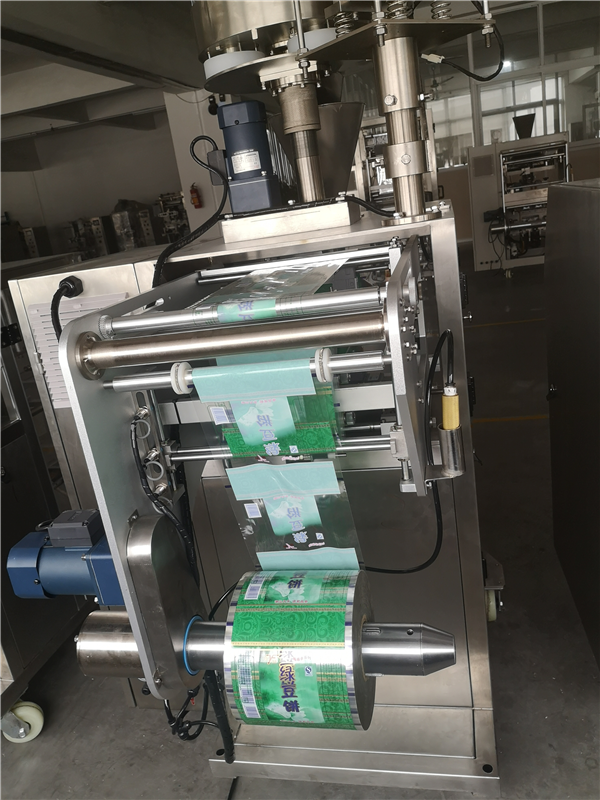

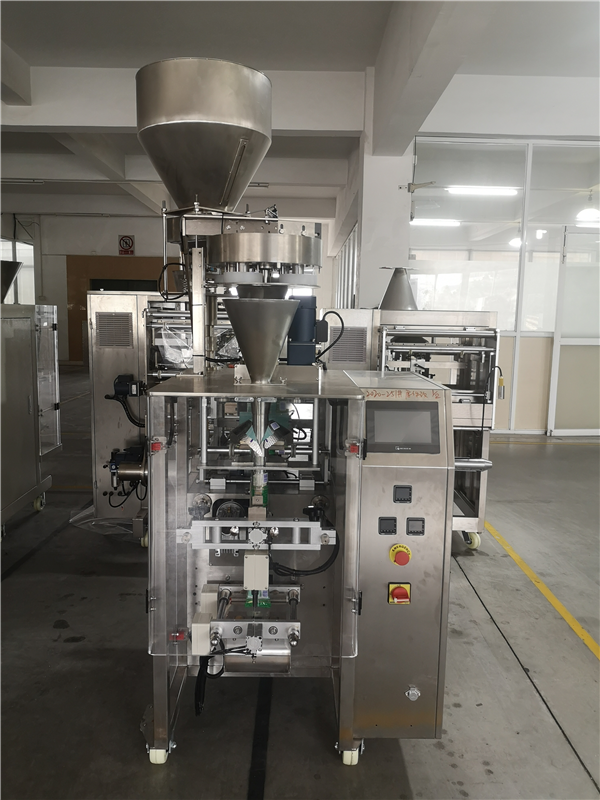

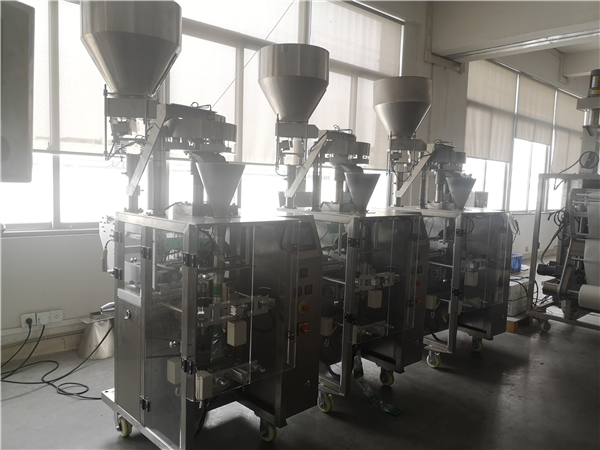

Puffed Food Vertical Packaging Machine with Volumetric Cup

304

NAME	VD32II with Volumetric cup device
Capacity	30-60 bags/min / machine according to the bag sizes, it is also affected by the quality of film and bag length.
Accuracy	≤±1.5%, depending on the measuring equipment & materials
Bag size	(L)60-250mm(W) 60-150mm
Film width	Max. 320mm
Bag type	Pillow bag,punching hole bag,gusseted bag,linking bags
Pulling belt type	Single-belts pulling film
Filling range	10-1000 ml
Film thickness	0.04-0.09mm
Film material	BOPP/VMCPP,PET/PE,BOPP/CPP, PET/AL/PE etc
Air consumption	0.8Mpa 0.3m3/min
Total power	3.245 KW (depend on the specific circumstances.)
Voltage	Single phase220V, three phase380V, 50HZ (depend on the customer’s country)
Air compressor	Not less than 1 CBM
