1. The machine was driven by electricity and air , easy to dismantle /assemble & clean. And the process match the GMP standard.
2. The filling precision reaches 0.5%-1%.
3. Airtac cylinder from Taiwan, electrial part are from Schneider and ZhengTai brand.The seal ring adopts Fluorine rubber with good function of Acid /alkali and high temperature resistant .
4. The contact part with material are made of 316SS,The body are made of 304SS.
5. Optional manual and semi-auto operation switch.
INQUIRY ONLINE
product detail
No.
Name
Model
Filling range(g)
Accuracy
Machine size
Speed
Machine weight
1

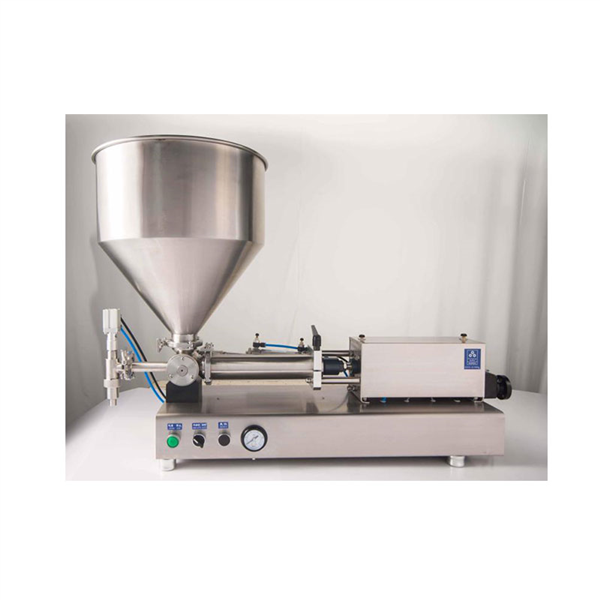

Table paste pump
CB-100-A
30-100ML/G
0.5%-1%
780*300*600
40-50/min
15KG
2
CB-250-A
100-250ML/G
0.5%-1%
950*400*650
30-50/min
20KG
3
CB-500-A
250-500ML/G
0.5%-1%
1200*400*700
30-40/min
25KG
4
CB-1000-A
500-1000ML/G
0.5%-1%
1300*400*760
20-30/min
30KG
5
CB-2000-A
1000-2000ML/G
0.5%-1%
1450*420*800
10-20/min
35KG
6
CB-5000-A
2000-5000ML/G
0.5%-1%
1600*560*830
8-15/min
45KG
