Baopack Auto Packaging Machine Co., Ltd.
We provide customers with a wide range of high-quality packaging machines, along with excellent services.
If you would like to leave us a comment please go to Contact Us
1
Range of application
Snack - Chips - Popcorn - Puffed food - Dried fruits - Cookies - Biscuits - Candies - Nuts - Rice - Beans - Grains - Sugar - Salt - Pet food - Pasta - Sunflower seeds - Gummy candies - Lollipop - Sesame
|
Speed |
50 bags/min ( Specific speed depends on bag length, film material, product, etc.) |
|
Bag size |
W155-350mm L200-500mm |
|
Bag type |
Pillow bag |
|
Pulling film |
Double belt to pull the film |
|
Max. Film width |
Max 730mm |
|
Film thickness |
0.04-0.09mm |
|
Air consumption |
0.8Mpa 0.35cmb/min |
|
Power |
3.7KW,380V/220V 50Hz/60HZ |
|
Dimension |
L2000mm*W1200mm*H2000mm |
|
Waterproof grade |
IP65 |
INQUIRY ONLINE
product detail

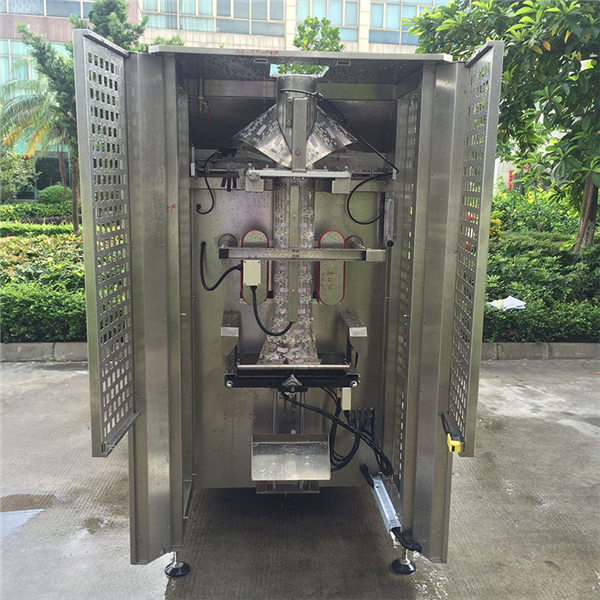

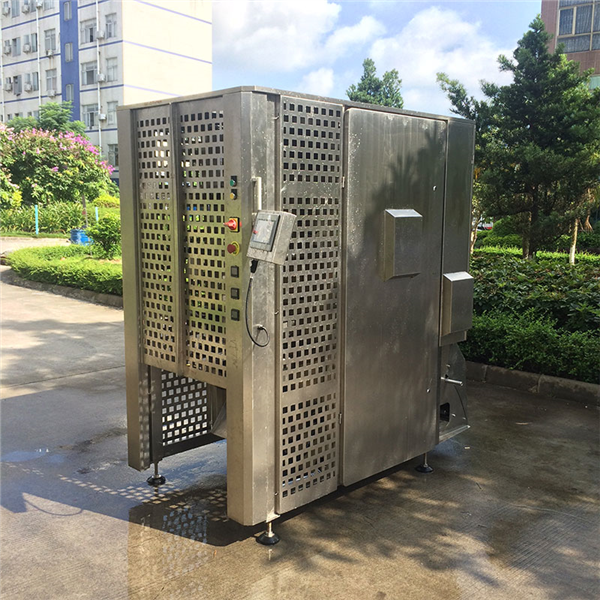

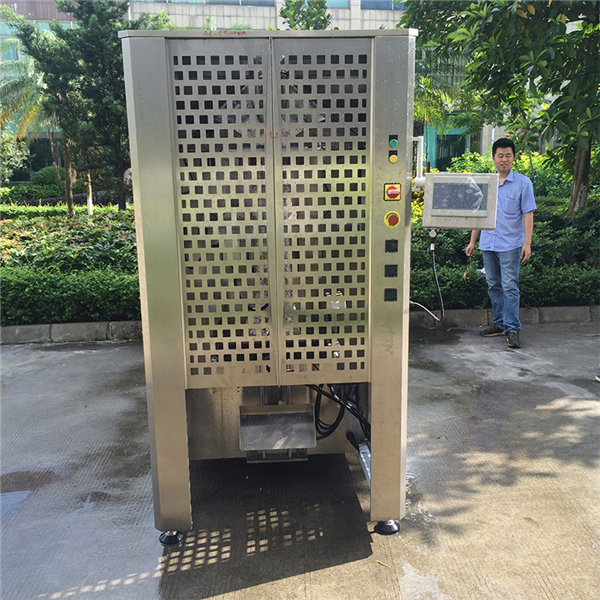

Introduction
This packing system is suitable for packing coffee bean, sugar, salt, spices, potatochip, puffed food, jelly, pet food, snacks, gummy, etc. This model machine can be waterproof, dustproof, rustproof.
Package product
Z-type conveyor
Lifting height: Can be customized to meet customers’ requirement.
Speed of lifting:0-17m/minute
Output conveyor
The finished products conveyor have different models. The belt width can be 200mm, 300mm, 295mm, 435mm, etc. The belt material has PU, PVC, PP belt, or chain belt. The optional device is various speed drives.
View More
Rotary table
The rotary table can collect finished products.
Diameter: 1000 mm
Height: 650 mm
Voltage: 220V/120 W
Supporting Platform
The sizes of supporting platform can be customized. Its sizes are depended by the sizes of packing machine and weigher. The platform can be made by stainless steel, also can be painted steel.
View More14 heads weigher
BAOPACK Packaging Machinery Co.,Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.

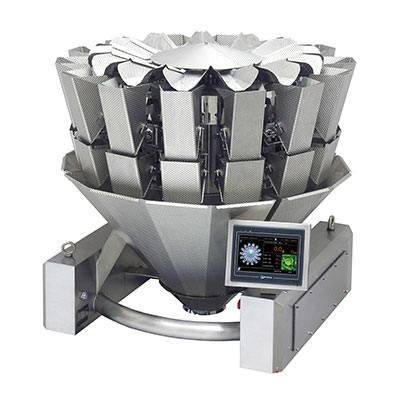

Weigher：14 Heads high speed combination weigher
Model: CB-14HA
Surface Execution：Plain surface / dimple surface
Material：304 stainless steel
Bucket capacity：1.3L
Max single dump：Up to 1.8L
Max speed：Up to 115 wpm
Accuracy：± 0.5-- 1g
Discharge point：one
Control Panel：10 inch touch screen
Driving system：Step motor
Loadcell：8KG
Power supply：220V/50HZ(60HZ)
Gross weigh/ Net weigh：530KG/430KG
Package size：1630*1130*1320 mm
We have various models of weigher, such as 10 heads weigher, 14 heads weigher, 18 heads weigher, Salad weigher, linear weigher, and so on. Different products will be used different weigher. Please refers Package Measurement System of Flexible Solution.
Z-type conveyor
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
Lifting height: Can be customized to meet customers’ requirement.
Speed of lifting:0-17m/minute
Lifting quantity:9 or 12 cubic meter/hour
Bucket:2L or 4L, flat or dimple bucket
Power:750W
Voltage:380v
Output conveyor
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
The finished products conveyor have different models. The belt width has 200mm, 300mm, 295mm, 435mm, etc. The belt material has PU, PVC, PP belt, or chain belt. The optional device is various speed drives.
Rotary table
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
Rotary table can collect the finished bags. The workers can sit beside the rotactary table to collect the finished bags into the boxes or other packages.
Specification
Diameter: 1000mm
Height: 650mm
Voltage: 220V/120W
Supporting Platform
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
The sizes of supporting platform can be customized. Its sizes are depended by the sizes of packing machine and weigher. The platform can be made by stainless steel or mild steel.
INQUIRY ONLINE
VFFS Water-proof Machine With Multi Heads Weigher
