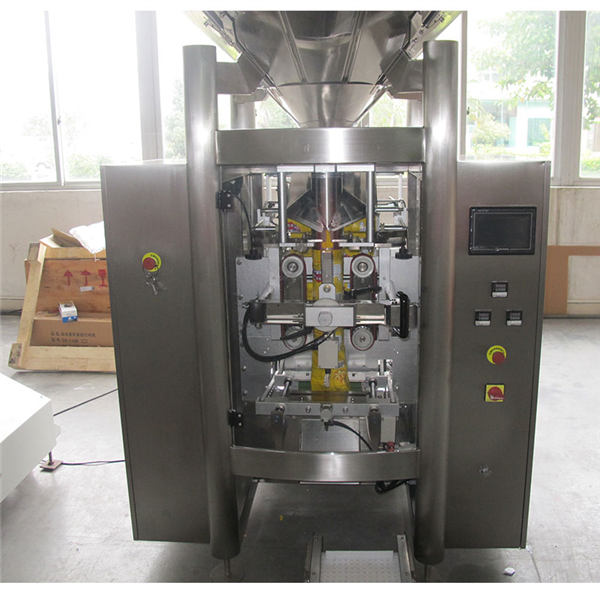

VFFS 2 in 1 Packing Machine with Multi Heads Weigher

Range of application

Snack - Chips - Popcorn - Puffed food - Dried fruits - Cookies - Biscuits - Candies - Nuts - Rice - Beans - Grains - Sugar - Salt - Pet food - Pasta - Sunflower seeds - Gummy candies - Lollipop - Sesame

Items	Content
Capacity	Max 60 bag/min (will be affected by the other factors)
Bag size	Width: 50-220mm
	Length: 50-330mm
Bag type	Pillow bag (optional:gusseted bag, bag with euroslot, strip bags, ect.)
Filling range	Less or equal to 2.4L
Reel film width	120- 460mm
Film thickness	0.04-0.09mm
Air consumption	0.6Mps 0.3m3/min
Main power/voltage	2.2KW/ 220V 50/60Hz
Dimension	137016242670mm
Weight	900kg

INQUIRY ONLINE

product detail

Introduction

This packing system is suitable for packing puffed food, candy, biscuit, sunflower seed, potato chip, pistachio, peanut, chocolate, nut, pet food, small metal parts and plastic parts, etc.

Pasta wrappers are a great way to package and store bubbly pasta so you can use it right away. You don't have to store them for long anymore, just unpack and use your pasta as soon as possible. These machines work with the rolling mechanism to roll the pasta into a strand of noodles. The pasta is then packaged in a single pasta carton that has a zipper to seal it together.

Pasta has many special properties that make toppings difficult. Pasta usually comes in proprietary retail packaging, which ranges in weight from 20 grams to 1 gram. Therefore, pasta packaging machines cannot pre-fill from these containers.

There are two types of pasta packers on the market, automatic packers and manual packers. Manual pasta wrappers are quite historic and old-fashioned, but are still used in some factories. They are made of sturdy metal with stainless steel gears. They are very noisy and can damage some delicate doughs. The different types of automatic packaging machines work with electric, silent, efficient and durable motors.

Moreover, the pasta packaging machine is designed with a relatively superior strategy to automate it.

Package product

10 heads weigher

Weigh Ranger 5-1000g

Accuracy:0.2-1g

View More
Z-type conveyor

Lifting height: Can be customized to meet customers’ requirement.
Speed of lifting:0-17m/minute
View More
Output conveyor

The finished products conveyor have different models. The belt width can be 200mm, 300mm, 295mm, 435mm, etc. The belt material has PU, PVC, PP belt, or chain belt. The optional device is various speed drives.
View More
Rotary table

The rotary table can collect finished products.
Diameter: 1000 mm
Height: 650 mm
Voltage: 220V/120 W
View More
Supporting Platform

The sizes of supporting platform can be customized. Its sizes are

Successful Cases

VFFS High speed machine VG42 with multi heads weigher

VFFS doy bag packing machine with multi heads weigher

VFFS Pillow/gusseted bag machin VP52B with exhaust valve

VFFS Pillow/gusseted bag machine VP42 with volumetric cup device

VFFS pillow/gusseted bag machine VP52B with multi heads weigher and sugar doser

VFFS Pillow/gusseted bag machine VP42 with multi heads weigher

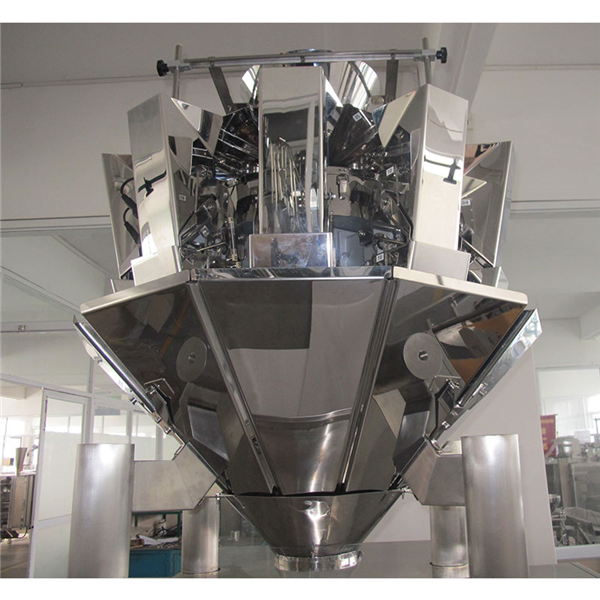

10 heads weigher

BAOPACK Packaging Machinery Co.,Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.

Weigh Ranger 5-1000g

Accuracy:0.2-1g

Max Speed:65wpm

Weigh Volume:1.3L

Hopper No:10

Control Panel:7 inch touch screen

Driving system:stepper motor

Material:SUS 304

Power supply:AC 110/220, 50/60 Hz

Power:1.0 kw

Size(L*W*H):1075*1050*1330 mm

Weight:340 kg

We have various models of weigher, such as 10 heads weigher, 14 heads weigher, 18 heads weigher, Salad weigher, linear weigher, and so on. Different products will be used different weigher. Please refers Package Measurement System of Flexible Solution.

Z-type conveyor

BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.

Lifting height: Can be customized to meet customers’ requirement.

Speed of lifting:0-17m/minute

Lifting quantity:9 or 12 cubic meter/hour

Bucket:2L or 4L, flat or dimple bucket

Power:750W

Voltage:380v

Output conveyor

BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.

The finished products conveyor have different models. The belt width can be 200mm, 300mm, 295mm, 435mm, etc. The belt material has PU, PVC, PP belt, or chain belt. The optional device is various speed drives.

Rotary table

BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.

The rotary table can collect finished products.

Diameter: 1000 mm

Height: 650 mm

Voltage: 220V/120 W

Supporting Platform

BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.

The sizes of supporting platform can be customized. Its sizes are depended by the sizes of packing machine and weigher. The platform can be made by stainless steel, also can be painted steel.
