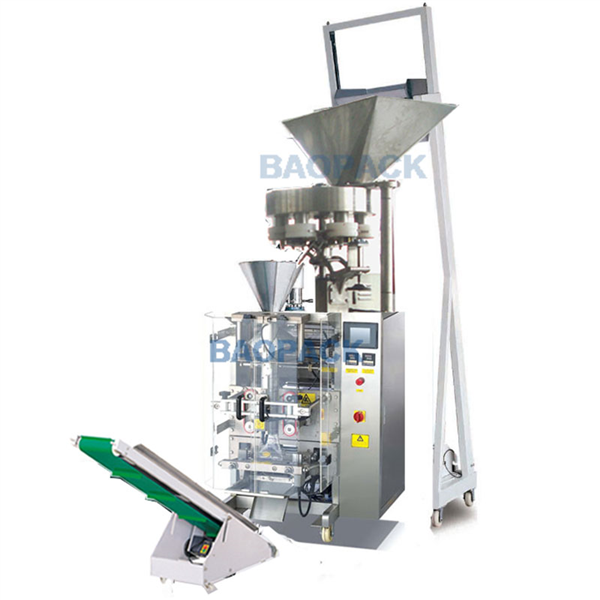

VFFS Pillow/Gusseted Bag Machine VP42 with Volumetric Cup Device

Packing Machine VP42 with Volumetric Cup Device

Range of application

Snack - Chips - Popcorn - Puffed food - Dried fruits - Cookies - Biscuits - Candies - Nuts - Rice - Beans - Grains - Sugar - Salt - Pet food - Pasta - Sunflower seeds - Gummy candies - Lollipop - Sesame

Item	Content
Capacity	*20-60 bags/min, depending on the measuring equipment, materials & packing film’ material.
Accuracy	*≤±1.5% , depending on the measuring equipment & materials
Bag size	(L)60-300mm (W)60-200mm
Film width	Max 420mm
Bag type	Pillow bag, punching bag, gusseted bag, vacuum bag
Filling range	10-1300ml (Depends on different products)
Film thickness	0.04-0.09mm
Package material	BOPP/VMCPP,PET/PE,BOPP/CPP, PET/AL/PE etc
Air consumption	0.8Mpa 0.5m3/min
Total powder	6.045KW
Voltage	380V 50HZ
Air compressor	Not less than 1 CBM
Total height	3.760 m

INQUIRY ONLINE

product detail

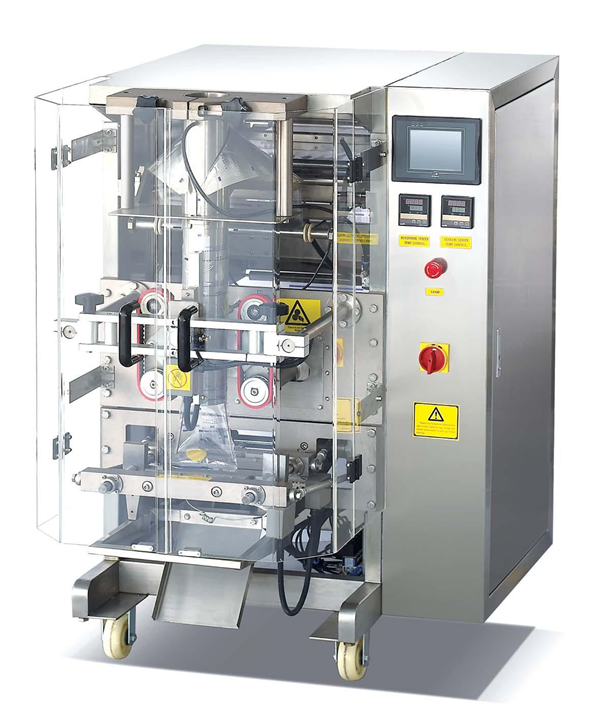

This sunflower seeds packing machine receives rectifying framework conolled by mircomputer , attributable to a reaction signal is handle and set pass through microcomputer it can accoplish.

Entire set to synchronization, sack length, position fixing, voluntararily follow the tracks of light - check and intentionally analyze inconvenience and show to screen.

This automatic sunflower pacaging machine can atuomatically finish a progression of activities, for example, sack making,the estimating, filling, swelling, checking, fixing, code printing, material giving, halting in certain quanting, fixed-pack cutting and same cutting.

The Automatic Seed Packing Machine Sunflower Seeds Packing Machine reasonable for bundle of food item, preparing (For instance : extending, popcorn, melon seed, chicken quintessence, nut, nuts, custom, non-tacky powder, etc.)

The Automatic Seed Packing Machine Sunflower Seeds Packing Machine have a place with packing material of hot-scaling, like polyester/polythylene. nylon compound film, reinforce compound layer, BOPP, etc.

sunflower seeds packing machin

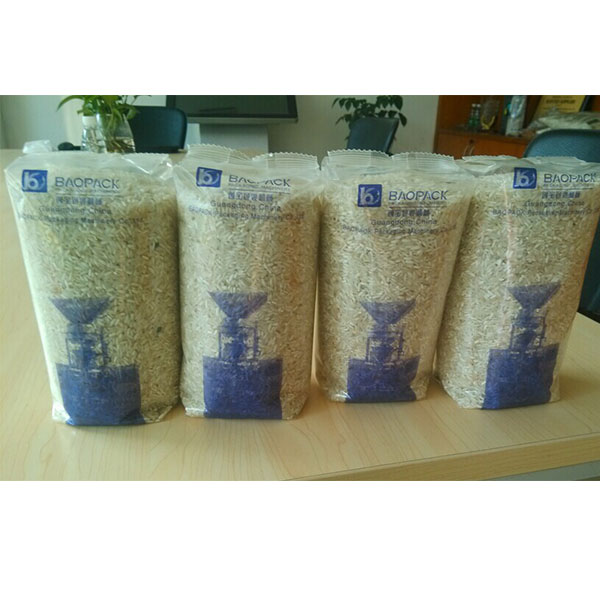

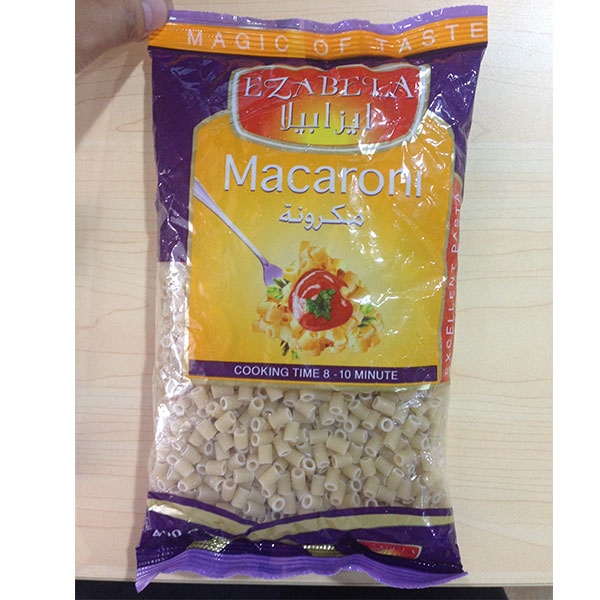

Package product

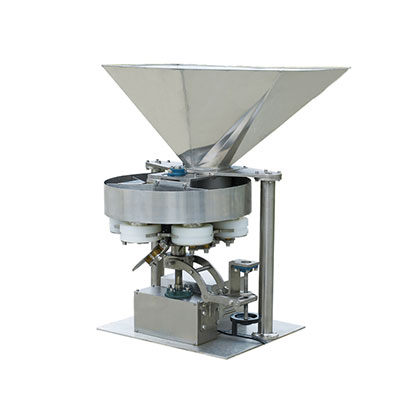

Volumetric Cup Device

304 Stainless steel. Fully meet the health standard

Made of high quality stainless steel,no rust,health and safety

View More

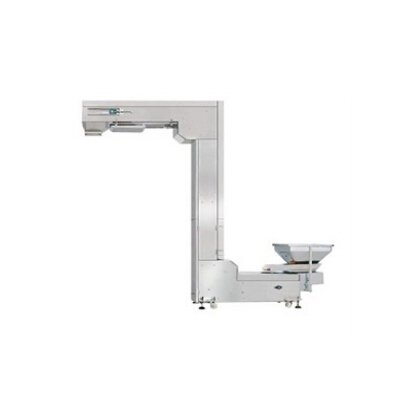

Z-type conveyor

Lifting height:3226mm
Total height:3800mm

View More

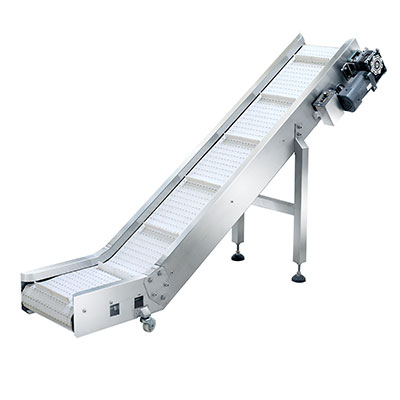

Output conveyor

The finished products conveyor have different models. The belt width can be 200mm, 300mm, 295mm, 435mm, etc. The belt material has PU, PVC, PP belt, or chain belt. The optional device is various speed drives.

View More

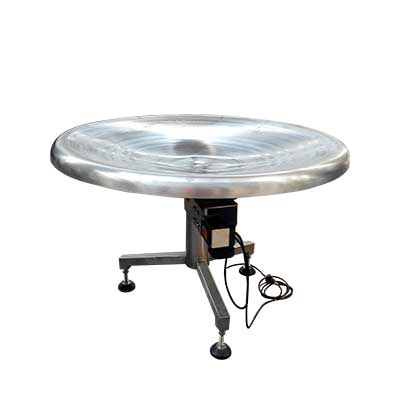

Rotary table

The rotary table can collect finished products.

Diameter: 1000 mm

Height: 650 mm

Voltage: 220V/120 W

View More

Successful Cases

VFFS High speed machine VG42 with multi heads weigher

VFFS doy bag packing machine with multi heads weigher

VFFS Pillow/gusseted bag machin VP52B with exhaust valve

VFFS Pillow/gusseted bag machine VP42 with volumetric cup device

VFFS pillow/gusseted bag machine VP52B with multi heads weigher and sugar doser

VFFS Pillow/gusseted bag machine VP42 with multi heads weigher

Volumetric Cup Device

BAOPACK Packaging Machinery Co.,Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.

304# Stainless steel. Fully meet the health standard

Made of high quality stainless steel,no rust,health and safety

Wide range of measuring,high packing speed

Easy to adjust,low maintenance

Economical and high efficiency

We have various models of volumetric cup device, please refers the "Package Measurement System" for more details.

Z-type conveyor

BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.

Lifting height:3226mm
Total height:3800mm
Speed of lifting:0-17m/minute
Lifting quantity:9 cubic meter/hour
Power:750W
Voltage:380v

Output conveyor

BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.

The finished products conveyor have different models. The belt width can be 200mm, 300mm, 295mm, 435mm, etc. The belt material has PU, PVC, PP belt, or chain belt. The optional device is various speed drives.

Rotary table

BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.

The rotary table can collect finished products.

Diameter: 1000 mm

Height: 650 mm

Voltage: 220V/120 W
