Range of application
Vegetables - Products - Frozen food - Dried fruits - Cookies - Biscuits - Candies - Nuts - Rice - Beans - Grains - Sugar - Salt - Pet food - Pasta - Sunflower seeds - Gummy candies - Lollipop - Sesame
|
Item |
Content |
|
Capacity |
45 bag/min,it is according to quality of wrapping and supplies |
|
Accuracy |
≤±1.5% |
|
Bag size |
(L)20-400mm (W)140-350mm |
|
Film width |
730mm |
|
Bag type |
Pack with film, upper seal, lower seal and back seal by automatic bag making machine. |
|
Film thickness |
0.06-0.12mm |
|
Package material |
thermal composite material., likeBOPP/CPP, PET/AL/PE etc |
|
Air consumption |
0.8Mpa 0.8m3/min |
|
Total powder |
7.795KW |
|
Voltage |
Four wire three phase 380V 50HZ |
|
Air compressor |
Not less than 1CBM |
|
Total height |
4.183m |
INQUIRY ONLINE
product detail
Introduction
This packing system is suitable for packing vegetables, products, candy, sunflower seed, pistachio, peanut, chocolate, nut, pet food, small metal parts and plastic parts, etc.
Package product

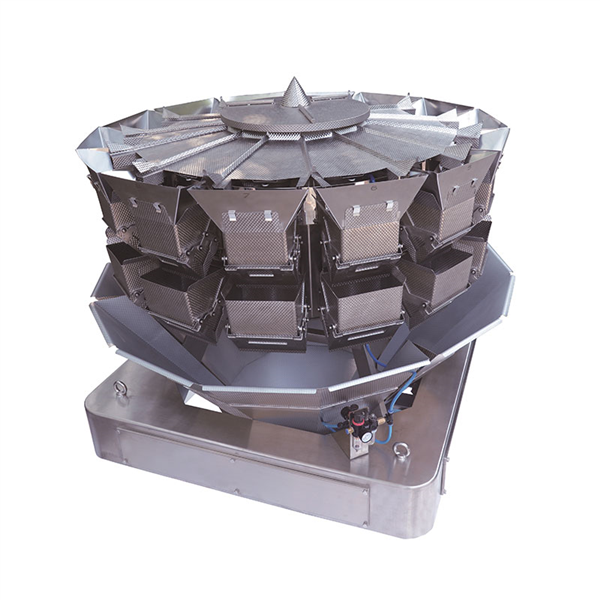

14 heads salad weigher
It is suitable for weighing big granule products, beans, nuts, fruits, vegetable and salad with large target weight or volume.
View More
Z-type conveyor
Lifting height: Can be customized to meet customers’ requirement.
Speed of lifting:0-17m/minute
Output conveyor
The finished products conveyor have different models. The belt width can be 200mm, 300mm, 295mm, 435mm, etc. The belt material has PU, PVC, PP belt, or chain belt. The optional device is various speed drives.
View More
Rotary table
The rotary table can collect finished products.
Diameter: 1000 mm
Height: 650 mm
Voltage: 220V/120 W
Supporting Platform
The sizes of supporting platform can be customized. Its sizes are depended by the sizes of packing machine and weigher. The platform can be made by stainless steel, also can be painted steel.

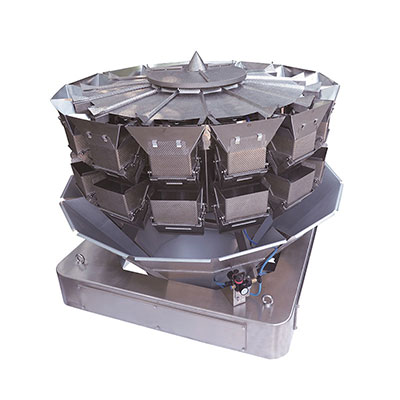

View More14 heads salad weigher
BAOPACK Packaging Machinery Co.,Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
Max. Cap.(g): 100-5000g
Weighing Accuracy(g) : 1-10g
Max. Weighing Speed: 50~70WPM
Hopper Volume: 5000ml
Control Panel: 7" Touch Screen
Options 60 angled waterproof frame, dimple plate, rotary top cone, stopper ring
Driving System: Step Motor
Power Requirements: 220V / 2000W / 50/60HZ / 12A
Packing Dimension(mm): 1226(L)x880(W)x1270(H)
Gross WGT: 650KG
We have various models of weigher, such as 10 heads weigher, 14 heads weigher, 18 heads weigher, Salad weigher, linear weigher, and so on. Different products will be used different weigher. Please refers Package Measurement System of Flexible Solution.
Z-type conveyor
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
Lifting height: Can be customized to meet customers’ requirement.
Speed of lifting:0-17m/minute
Lifting quantity:9 or 12 cubic meter/hour
Bucket:2L or 4L, flat or dimple bucket
Power:750W
Voltage:380v
Output conveyor
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
The finished products conveyor have different models. The belt width has 200mm, 300mm, 295mm, 435mm, etc. The belt material has PU, PVC, PP belt, or chain belt. The optional device is various speed drives.
Rotary table
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
Rotary table can collect the finished bags. The workers can sit beside the rotactary table to collect the finished bags into the boxes or other packages.
Specification
Diameter: 1000mm
Height: 650mm
Voltage: 220V/120W
Supporting Platform
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
The sizes of supporting platform can be customized. Its sizes are depended by the sizes of packing machine and weigher. The platform can be made by stainless steel or mild steel.
INQUIRY ONLINE

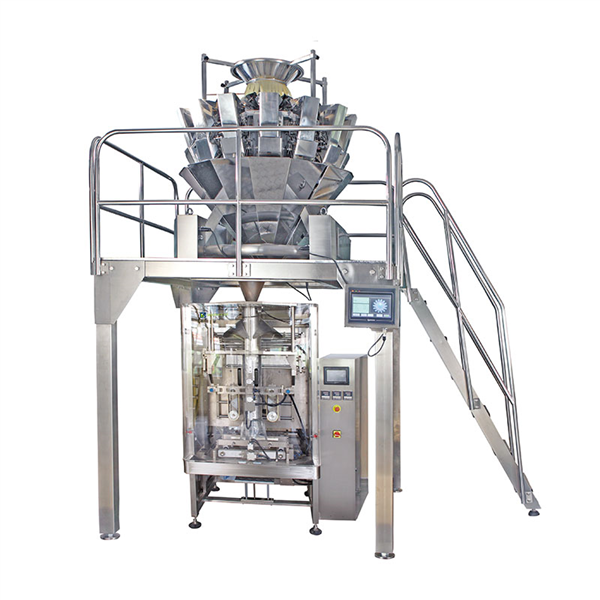

VFFS Pillow/Gusseted Large Model VP73 With Salad Weigher
