Baopack Auto Packaging Machine Co., Ltd.
We provide customers with a wide range of high-quality packaging machines, along with excellent services.
If you would like to leave us a comment please go to Contact Us
1
Range of application
Snack - Chips - Popcorn - Puffed food - Dried fruits - Cookies - Biscuits - Candies - Nuts - Rice - Beans - Grains - Sugar - Salt - Pet food - Pasta - Sunflower seeds - Gummy candies - Lollipop - Sesame
|
Item |
Content |
|
Capacity (estimate) |
50-55 bags/min (depending on weight& packing film’ material.) |
|
Accuracy |
≤±1.5%, depending on the measuring equipment & materials |
|
Bag size |
(L)50-350mm(W) 50-250mm |
|
Film width |
Max 520mm |
|
Bag type |
Pillow bag,punching hole bag,gusseted bag |
|
Pulling belt type |
Double-belts pulling film |
|
Filling range |
10-2000ml |
|
Film thickness |
0.04-0.09mm |
|
Film material |
BOPP/VMCPP,PET/PE,BOPP/CPP, PET/AL/PE etc |
|
Air consumption |
0.8Mpa 0.3m³/min |
|
Total power |
6.1 KW |
|
Voltage |
Single phase220V, three phase380V, 50HZ |
|
Air compressor |
Not less than 1 CBM |
INQUIRY ONLINE
product detail
Package product
Z-type conveyor
Lifting height: Can be customized to meet customers’ requirement.
Speed of lifting:0-17m/minute
Output conveyor
The finished products conveyor have different models. The belt width can be 200mm, 300mm, 295mm, 435mm, etc. The belt material has PU, PVC, PP belt, or chain belt. The optional device is various speed drives.
View More
Rotary table
The rotary table can collect finished products.
Diameter: 1100 mm
Height: 650 mm
Voltage: 220V/120 W
Supporting Platform
The sizes of supporting platform can be customized. Its sizes are depended by the sizes of packing machine and weigher. The platform can be made by stainless steel, also can be painted steel.
View MoreSuccessful Cases
SnackVFFS High speed machine VG42 with multi heads weigher
VFFS doy bag packing machine with multi heads weigher
VFFS Pillow/gusseted bag machine VP52B with exhaust valve
VFFS Pillow/gusseted bag machine VP42 with volumetric cup device
VFFS pillow/gusseted bag machine VP52B with multi heads weigher and sugar doser
VFFS Pillow/gusseted bag machine VP42 with multi heads weigher
14 heads weigher
BAOPACK Packaging Machinery Co.,Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
Weigher：14 Heads high speed combination weigher
Model: CB-14HA
Surface Execution：Plain surface / dimple surface
Material：304 stainless steel
Bucket capacity：1.3L
Max single dump：Up to 1.8L
Max speed：Up to 115 wpm
Accuracy：± 0.5-- 1g
Discharge point：one
Control Panel：10 inch touch screen
Driving system：Step motor
Loadcell：8KG
Power supply：220V/50HZ(60HZ)
Gross weigh/ Net weigh：530KG/430KG
Package size：1630*1130*1320 mm
We have various models of weigher, such as 10 heads weigher, 14 heads weigher, 18 heads weigher, Salad weigher, linear weigher, and so on. Different products will be used different weigher. Please refers Package Measurement System of Flexible Solution.
Z-type conveyor
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
Lifting height: Can be customized to meet customers’ requirement.
Speed of lifting:0-17m/minute
Lifting quantity:9 or 12 cubic meter/hour
Bucket:2L or 4L, flat or dimple bucket
Power:750W
Voltage:380v
Output conveyor
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
The finished products conveyor have different models. The belt width has 200mm, 300mm, 295mm, 435mm, etc. The belt material has PU, PVC, PP belt, or chain belt. The optional device is various speed drives.
Rotary table
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
Rotary table can collect the finished bags. The workers can sit beside the rotactary table to collect the finished bags into the boxes or other packages.
Specification
Diameter: 1100mm
Height: 650mm
Voltage: 220V/120W
Supporting Platform
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
The sizes of supporting platform can be customized. Its sizes are depended by the sizes of packing machine and weigher. The platform can be made by stainless steel or mild steel.
INQUIRY ONLINE

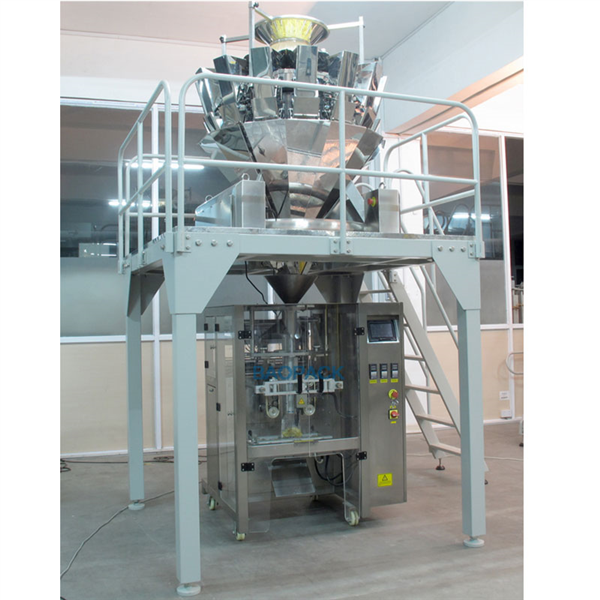

VFFS Pillow/Gusset Machine VP52IIB with 14 Heads Weigher
