1
Item |
Content |
Capacity (estimate) |
60-70 bags/min / machine according to the bag sizes, it is also affected by the quality of film and bag length. |
Accuracy |
≤±1.5%, depending on the measuring equipment & materials |
Bag size |
(L)50-330mm(W) 50-200mm |
Film width |
Max 420mm |
Bag type |
Pillow bag,punching hole bag,gusseted bag |
Pulling belt type |
Double-belts pulling film |
Filling range |
10-2000ml |
Film thickness |
0.04-0.09mm |
Film material |
BOPP/VMCPP,PET/PE,BOPP/CPP, PET/AL/PE etc |
Air consumption |
0.8Mpa 0.3m³/min |
Total power |
6.045 KW (depend on the specific circumstances.) |
Voltage |
Single phase220V, three phase380V, 50HZ (depend on the customer’s country) |
Air compressor |
Not less than 1 CBM |
INQUIRY ONLINE
product detail
Dry fruits can also be called dried fruits, which is more popularly known to the consumers and widely used in many households as a healthy snack or in other words a healthy option. These are small dried fruits that are made from either monounsaturated polyunsaturated or mono-acidity states, thereby meeting the needs and expectation of the people for a healthy snack without adding too much of calories and fats. This is the reason these are very much liked by people of all age groups.
Nowadays the food industry has taken full advantage of this technology of packaging with dry fruits packing machine which can be easily operated by a non-professional or even a novice. This automatic packaging machine are very much appreciated by the manufacturers due to their increased efficiency in packing different types of dry fruits in lesser time and within a shorter period of time. In addition to this these food automatic packaging machines are designed in such a way to preserve the freshness of the product to ensure longer shelf life. If you want to have a look at the various models of the packaging machine, you can visit the our websites and check out the product description, features and benefits of the product which grasps your heart.
There are different types of the dry fruits packing machine available in our company which include the powder coated packaging, foil coating, automatic vacuum packing machine, and the other types that can be selected according to your specific need and requirement. These can easily be purchased through our online websites as well as through offline retail stores. But it is strongly advised that you should go for examinations and field trip before you buying a kind of machine and ensure that the machine is offering you with the best quality at an affordable price.
With automatic packing machine, you will be able to save money and energy, which in turn will enable you to perform your food processing at a faster rate. These types of packaging are really helpful in making the packaging process of dried fruits and nuts much quicker. dry fruits packing machine can be easily switched on and off and can switch on after loading or unloading automatically without any help. They are very useful in food processing industry where proper attention must be given for the proper packing of the product to make sure that they get transported safely and are packaged in the right manner.
The food processing industry requires lots of manual work but if you consider the automatic packing machines they can certainly help you get rid of all of this manual work and save your valuable time. With the help of this equipment you will be able to process more amount of dry fruits pouch packing in a short span of time. Apart from this, these machines are also designed in such a way so as to save the environment from the adverse effects of the chemical used in the dry fruits pouch packaging. Therefore, this equipment is considered as the most environmental friendly packaging equipment.
With the help of dry fruits packing machine, you can process a maximum volume of dry fruits in minimum time and can also maintain the quality of your products. The food processing and other food processing related machinery and tools are designed in such a way so as to make the whole process automated and user friendly. This is why they become highly beneficial for the industry as well as for the users. You can simply buy any of the branded equipment from any of the leading manufacturers online and can even buy them in discounted rates.
Package product

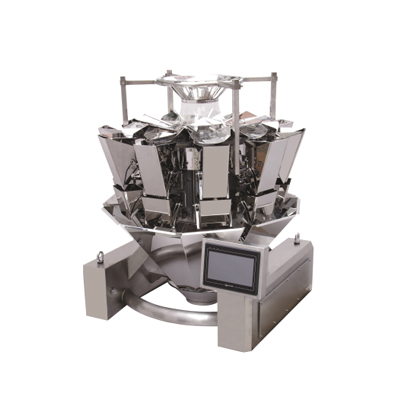

10 heads weigher
BAOPACK Packaging Machinery Co.,Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
Weigh Ranger: 5-1000g
Accuracy: 0.2-1g
Max Speed: 65wpm
Weigh Volume: 1.3L
Hopper No: 10
Control Panel: 7 inch touch screen
Driving system: stepper motor
Material: SUS 304
Power supply: AC 110/220, 50/60 Hz
Power: 1.0 kw
Size(L*W*H): 1075*1050*1330 mm
Weight: 340 kg
We have various models of weigher, such as 10 heads weigher, 14 heads weigher, 18 heads weigher, Salad weigher, linear weigher, and so on. Different products will be used different weigher. Please refers Package Measurement System of Flexible Solution.
Z-type conveyor
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
Lifting height: Can be customized to meet customers’ requirement.
Speed of lifting:0-17m/minute
Lifting quantity:9 or 12 cubic meter/hour
Bucket:2L or 4L, flat or dimple bucket
Power:750W
Voltage:380v
Output conveyor
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
The finished products conveyor have different models. The belt width can be 200mm, 300mm, 295mm, 435mm, etc. The belt material has PU, PVC, PP belt, or chain belt. The optional device is various speed drives.
Rotary table
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
The Rotary table can collect finished bags.
Diameter: 1000 mm
Height: 650 mm
Voltage: 220V/120 W

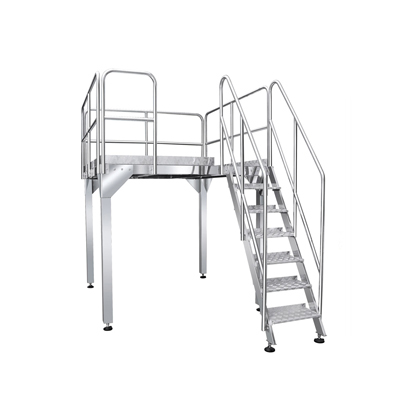

Supporting Platform
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
The sizes of supporting platform can be customized. Its sizes are depended by the sizes of packing machine and weigher. The platform can be made by stainless steel, also can be painted steel.
INQUIRY ONLINE

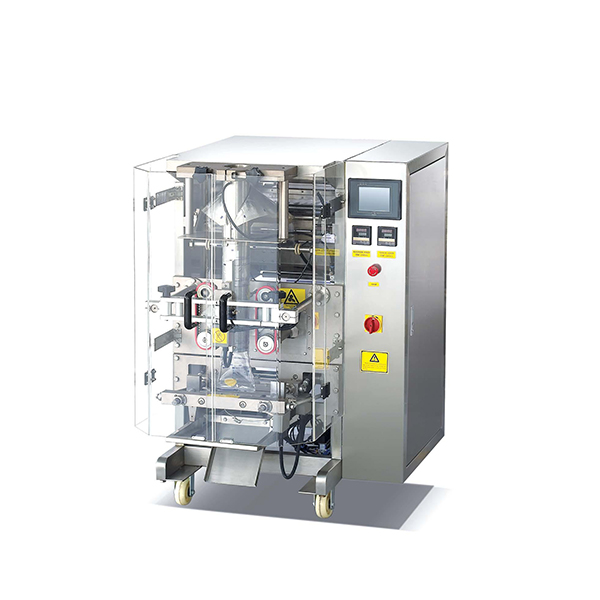

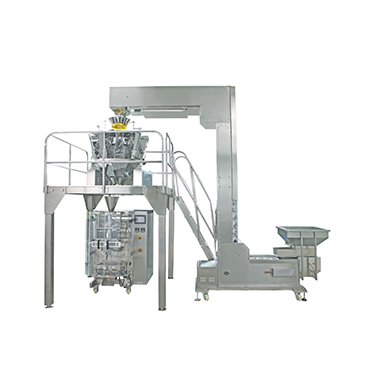

VFFS Pillow/Gusseted Bag Machine VP42 With Multi Heads Weigher
