1. The machine was driven by electricity and air , easy to dismantle /assemble & clean. And the process match the GMP standard.
2. The filling precision reaches 0.5%-1%.
3. Airtac cylinder from Taiwan, electrial part are from Schneider and ZhengTai brand.The seal ring adopts Fluorine rubber with good function of Acid /alkali and high temperature resistant .
4. The contact part with material are made of 316SS,The body are made of 304SS.
5. Optional manual and semi-auto operation switch.
INQUIRY ONLINE
product detail
No.
Name
Model
Filling range
Accuracy
Machine size
Speed
Machine weight
1

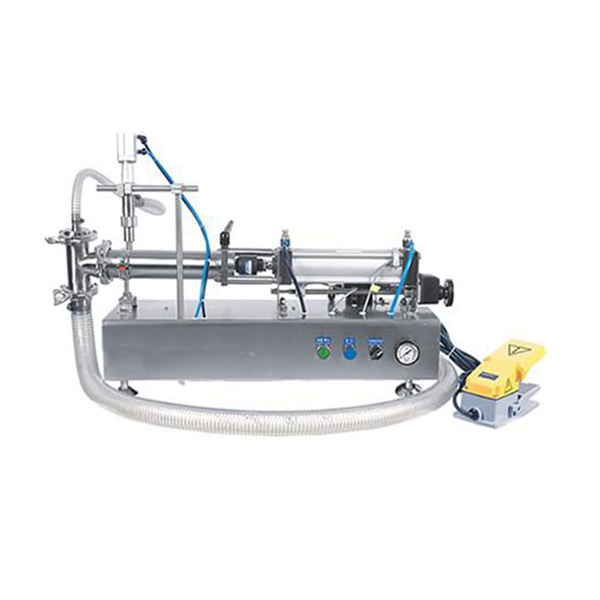

Table liquid pump
CB-100
30-100ML/G
0.5%-1%
800*230*500
50-70/min
10KG
2
CB-250
100-250ML/G
0.5%-1%
900*260*500
40-60/min
15KG
3
CB-500
250-500ML/G
0.5%-1%
960*260*500
30-40/min
20KG
4
CB-1000
500-1000ML/G
0.5%-1%
1200*250*600
20-30/min
25KG
5
CB-2000
1000-2000ML/G
0.5%-1%
1500*300*600
10-20/min
32KG
6
CB-5000
2000-5000ML/G
0.5%-1%
1700*300*600
8-15/min
37KG
