1
|
Item |
Content |
|
Model |
CB-VM82 |
|
Packing speed |
40bag/min |
|
Film width range |
300mm-820mm |
|
Bag size |
(L)130mm-380mm(W)110mm-320mm |
|
Bag type |
Standard Doy-pack, Doy-pack with Zipper. |
|
Bottom gusset depth |
40-80mm |
|
Film thickness |
0.04-0.09mm |
|
Air consumption |
0.8Mps 07m3/min |
|
Power supply |
5.3KW 220v 50Hz/60Hz |
|
Dimension |
(L)2150*(W)1710*(H)2040mm |
|
Weight |
880kg |
INQUIRY ONLINE
product detail
More than 95% spare parts are made of stainless steel. It can be used in the humid environments stably and keep long time running.
All controlled by servo motor with planetary gear box. There are belts and vacuum pump ccontrol pulling film system.
High standard bag type for market promotion. There are zipper, punching hole, and easy-tear mouth can be chosen.
Servo or cylinder can be chosen for horizotal sealing.
The bottom sides sealing and vertical sealing controlled by screw mandrel to adjust dfferrent size.
With patent right for the Wrinkle tensioning device to keep the nice bag sealing.
The forming tube with five -sides design, to make the perfect bag type and keep it nice.
BAG TYPE
06TS2
150g candy(2)
180g(2)
doy pack bag
doy packing bag 2
N49)L[2`0EF{V2ZCY0GBBTK
Olive bag
Olive bag
INQUIRY ONLINE

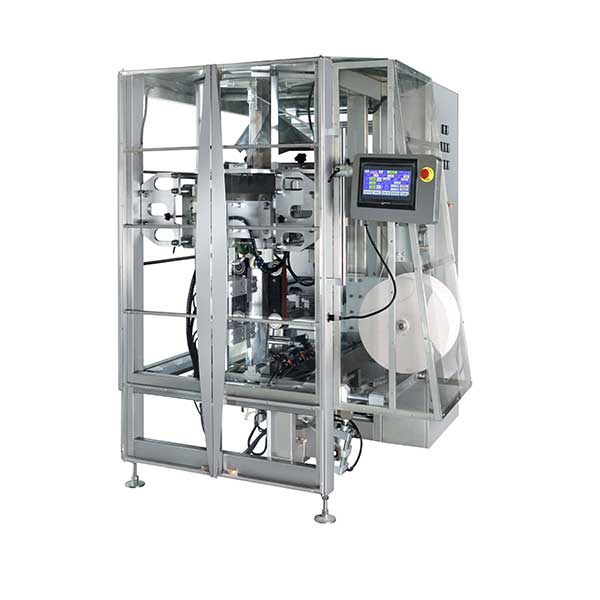

VFFS Doy-Pack Bagger VM82
